Acer A100 - Rear CCD Board Installation

3-42 Machine Maintenance Procedures
Rear CCD Board Installation 0
1. Connect CCD board (A) to mainboard connector (C). (Figure 3-58)

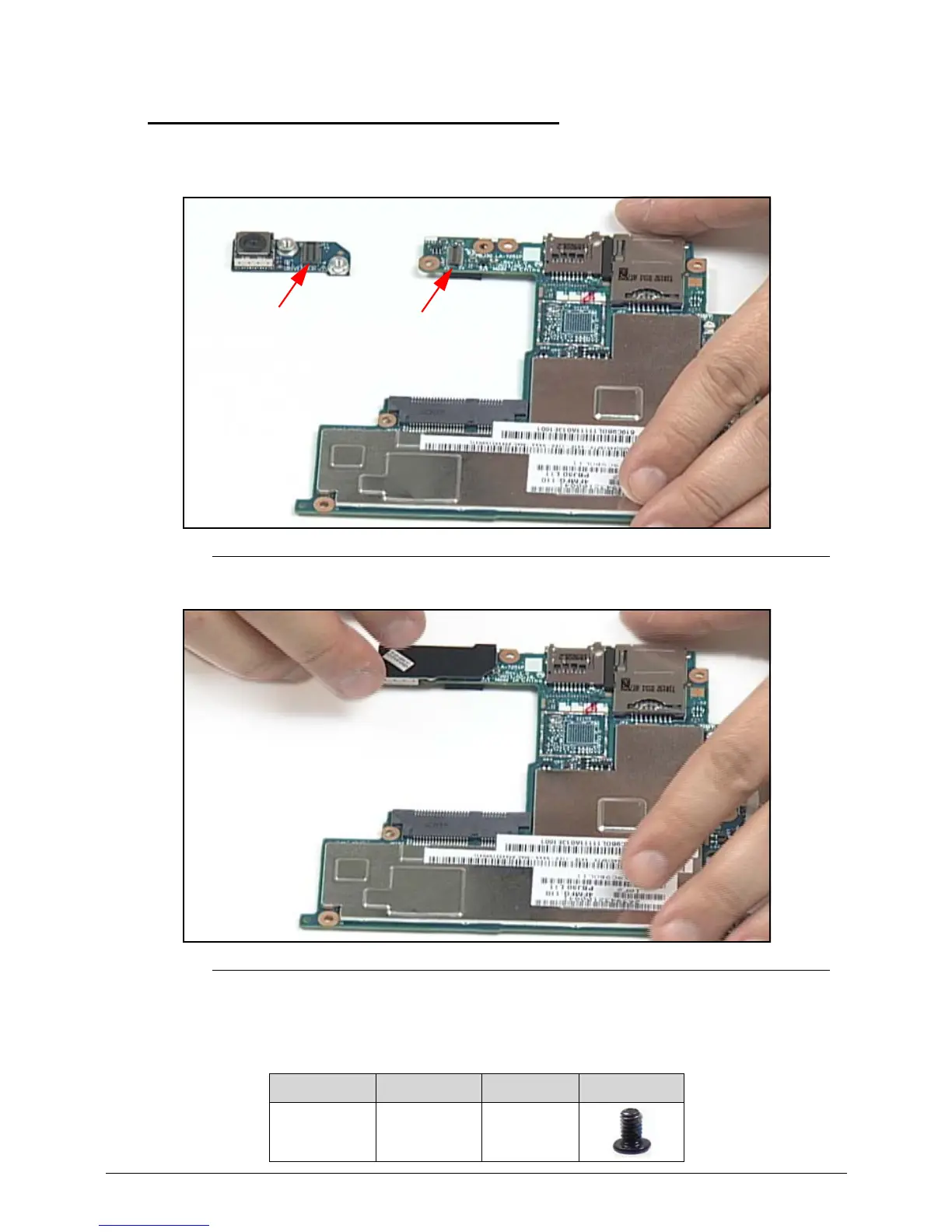

Figure 3-58. Installing Rear CCD Board (1 of 2)
Figure 3-59. Installing Rear CCD Board (2 of 2)
2. Install and secure screws (B) to mainboard. (Figure 3-55)
3. Install mainboard.
ID Size Quantity Screw Type
B M2.0x3.0 2
A
C
