Machine Maintenance Procedures 3-15
Lower Case Installation 0
1. Install and secure lower case locking latches (not shown) on bezel.
2. Install and secure screws (A) on bezel. (Figure 3-15 and Figure 3-16)
3. Install and secure top, right, bottom and left side covers to bezel. (Figure 3-9 through
Figure 3-14)

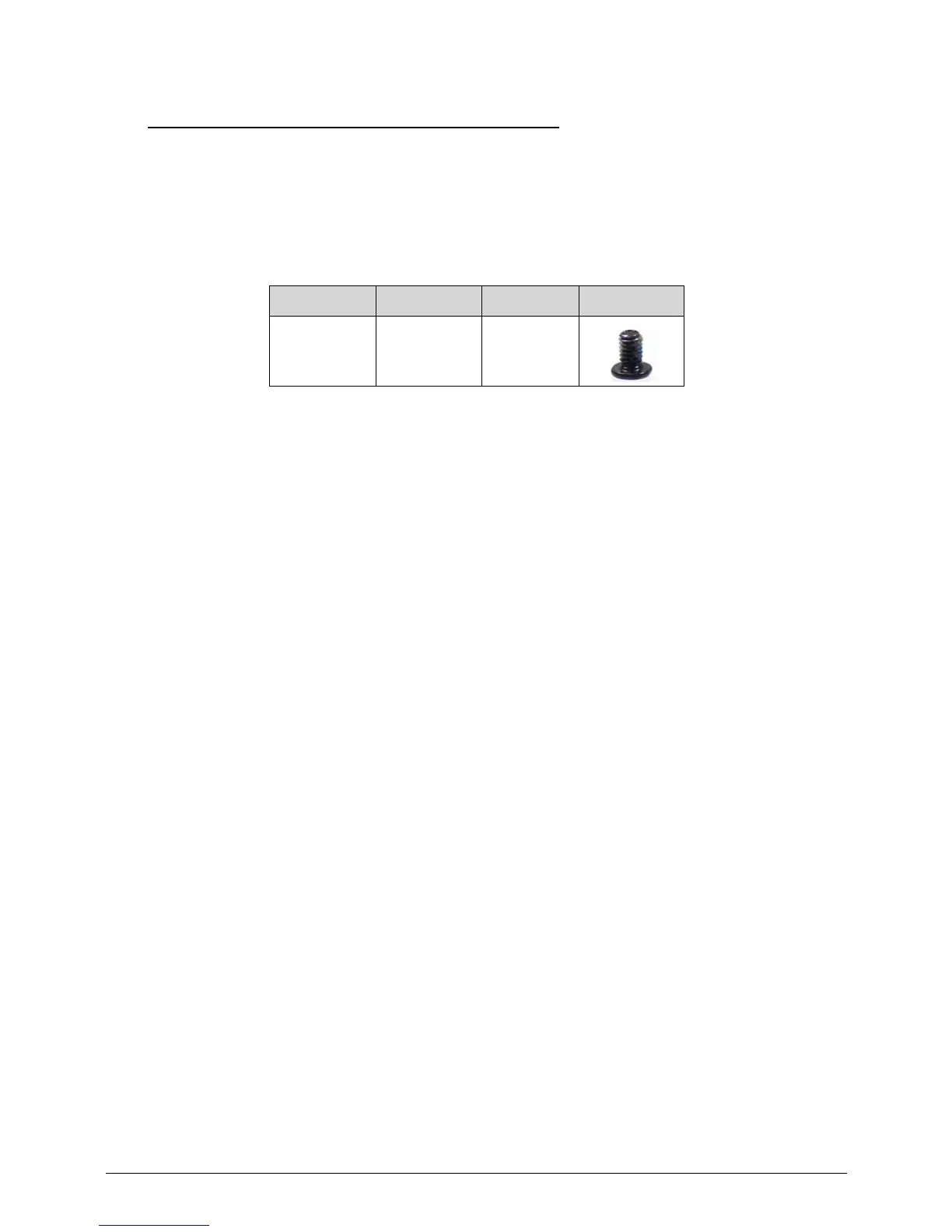

ID Size Quantity Screw Type
A M2.0x3.0 4
