Machine Maintenance Procedures 3-33
3G Antenna Removal 0
Prerequisite:
IO Board Removal
1. Locate 3G Antenna (A). (Figure 3-44)

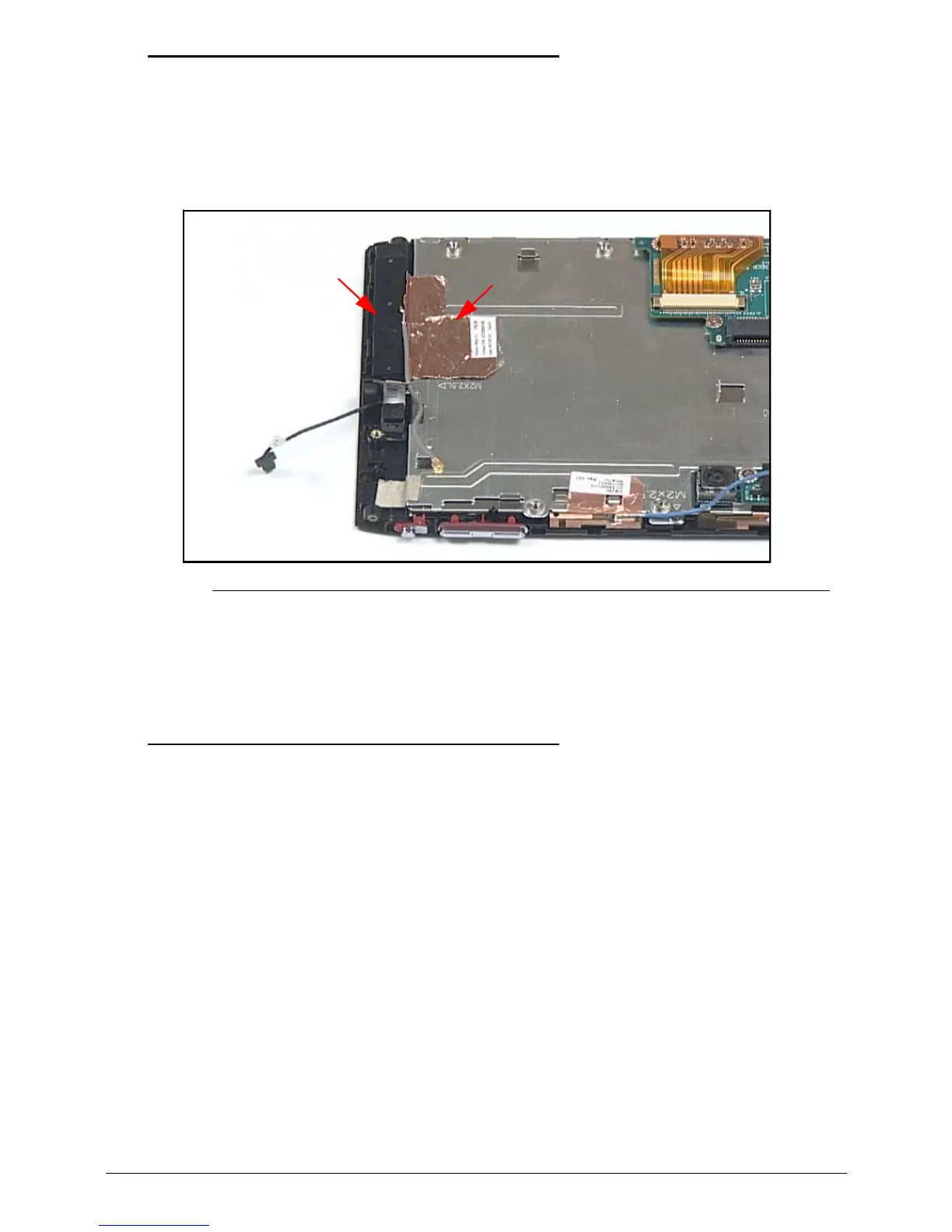

Figure 3-44. 3G Antenna Overview
2. Release 3G antenna foil (B) secured to support plate.
3. Remove 3G antenna from bezel.
3G Antenna Installation 0
1. Install 3G antenna (A) on bezel. (Figure 3-44)
2. Secure 3G antenna foil (B) on support plate.
3. Install IO Board.
