DC-In Cable Removal 0
Prerequisite:
Battery Removal
1. Locate DC-IN cable (A) on bezel. (Figure 3-29)

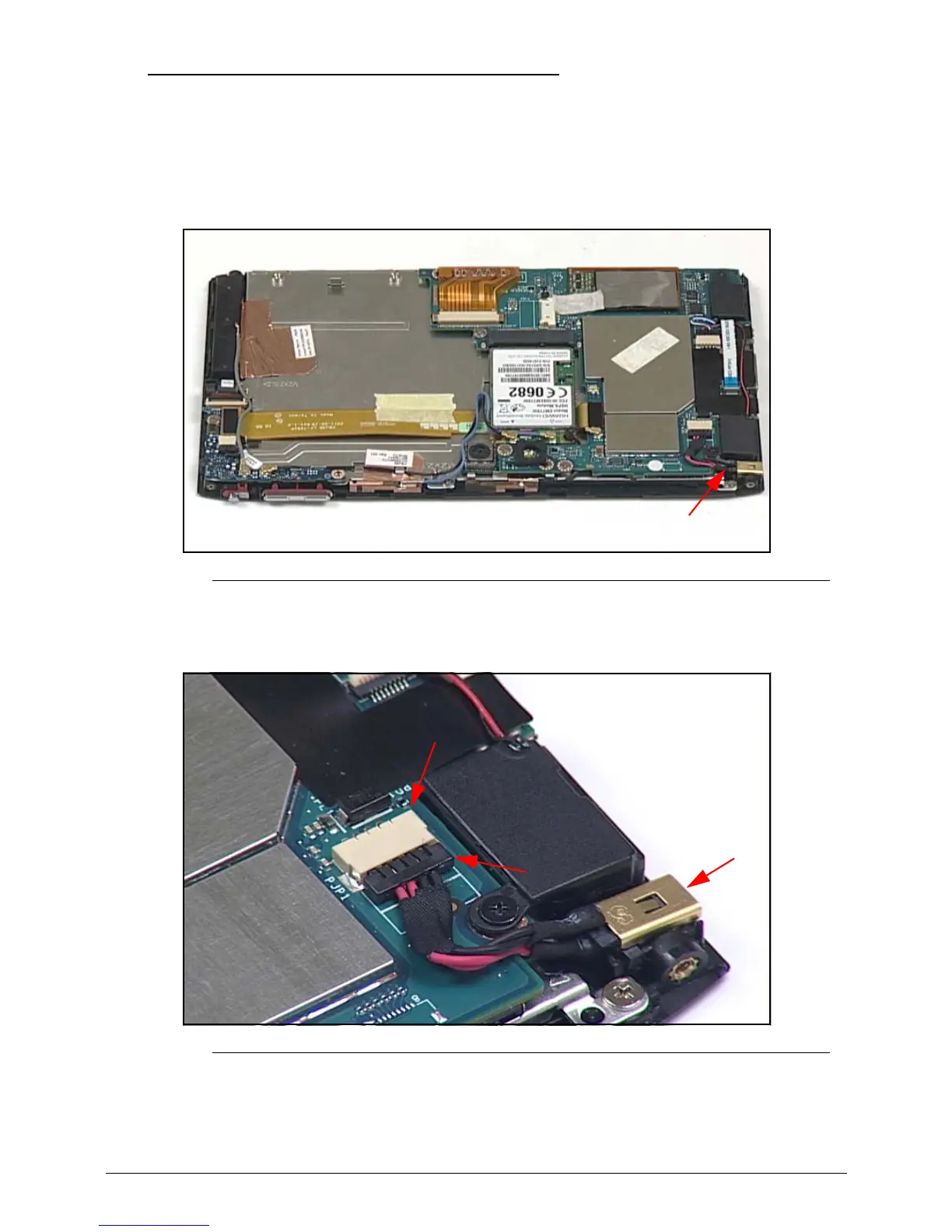

Figure 3-29. DC-IN Cable Overview
2. Disconnect DC-IN cable (A) from mainboard connector (B). (Figure 3-30)
Figure 3-30. DC-IN Cable, Jack and Mainboard Connector
3. Remove DC-IN cable jack (C) from bezel guide.
4. Remove DC-IN cable.
A
B
A
C
