Mainboard Removal 0
Prerequisite:
Speaker Module Removal
IO Board FPC Removal
1. Locate mainboard (A). (Figure 3-48)

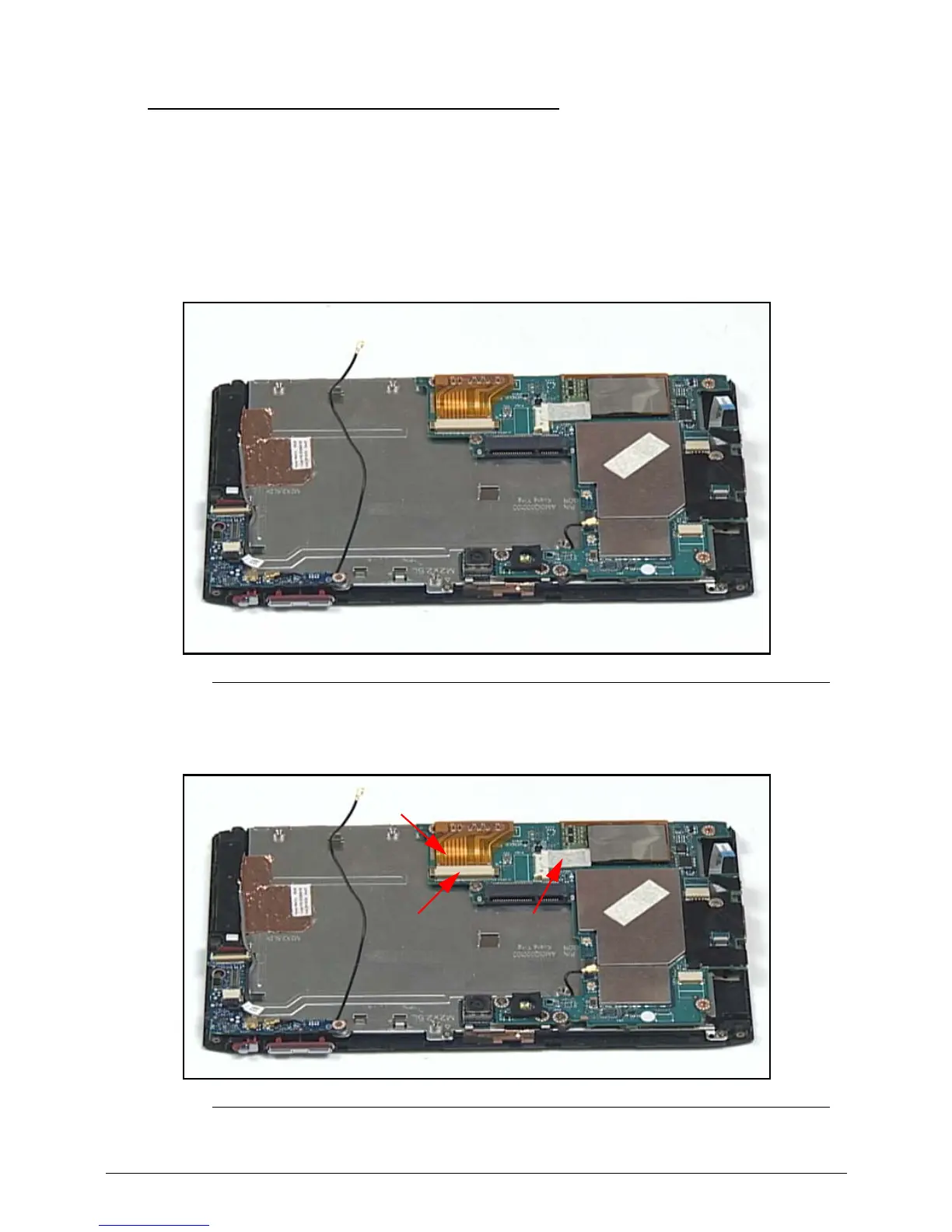

Figure 3-48. Mainboard Overview
2. Disconnect LVDS cable (B) from mainboard connector (C). (Figure 3-49)
Figure 3-49. LVDS Cable and Mainboard Connector
3. Remove tape (D) securing touch screen FPC to mainboard.
A
B
C
D
