Machine Maintenance Procedures 3-27
IO Board FPC Removal 0
Prerequisite:
Battery Removal (non-3G SKU)
3G Module Removal (3G SKU)

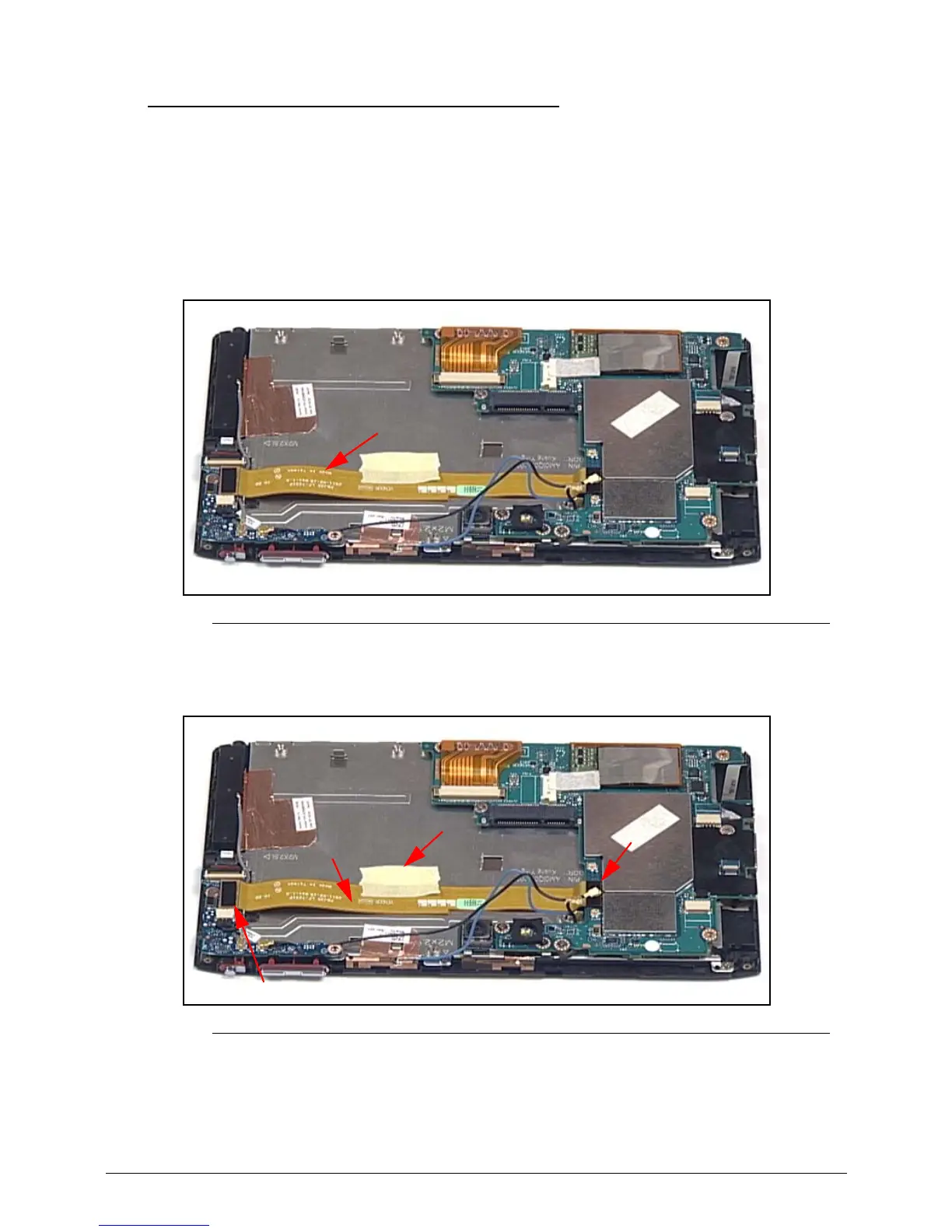

1. Locate IO Board FPC (A). (Figure 3-36)
Figure 3-36. IO Board FPC Overview
2. Remove adhesive tape (B) securing FPC to support plate. (Figure 3-37)
Figure 3-37. IO Board FPC and Mainboard Connectors
3. Disconnect FPC (A) from mainboard connector (C).
4. Disconnect FPC (A) from IO board connector (D).
5. Remove FPC.
