Light Sensor Module Removal 0
Prerequisite:
IO Board Removal
1. Locate light sensor module (A). (Figure 3-45)

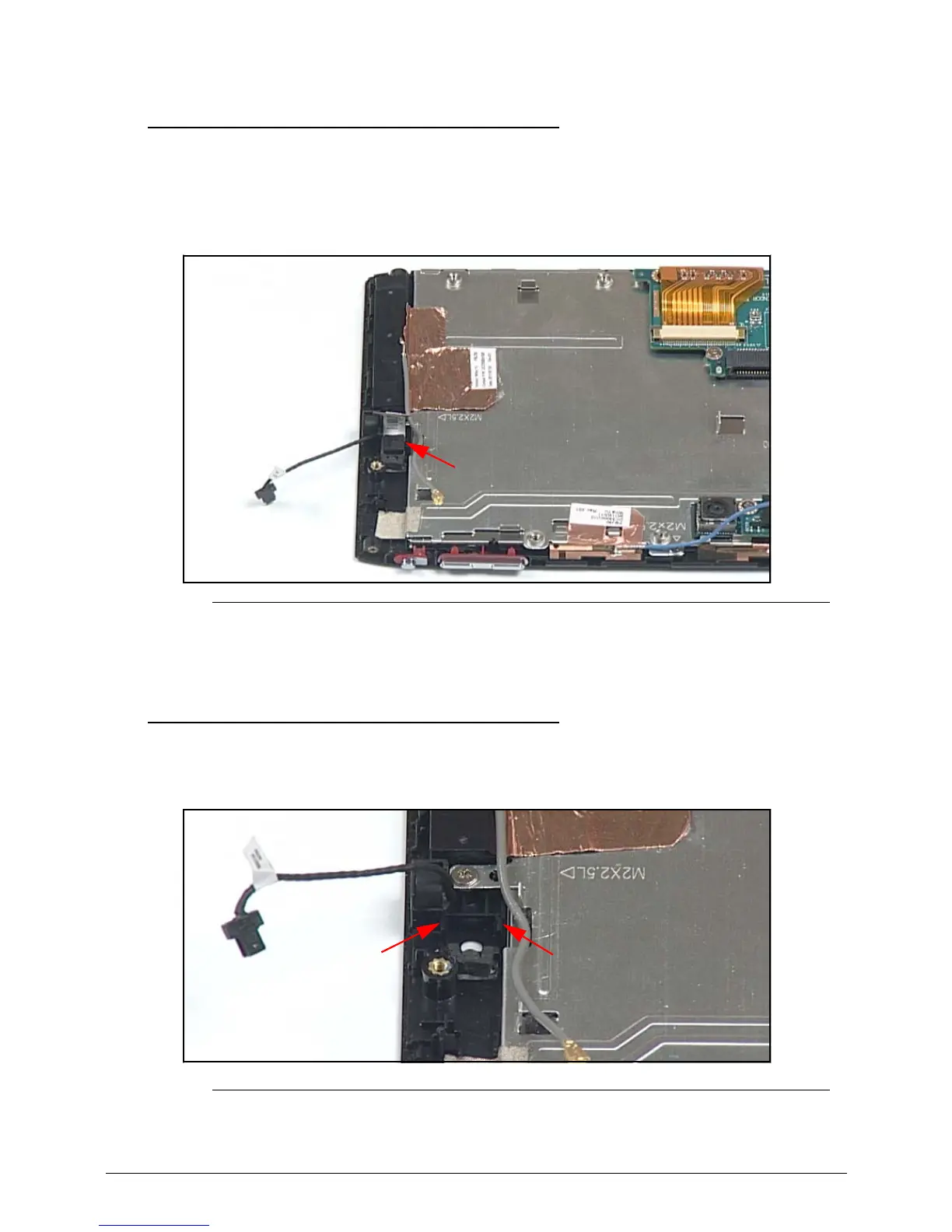

Figure 3-45. Light Sensor Module Overview
2. Remove light sensor module (A) from bezel.
Light Sensor Module Installation 0
1. Install and secure light sensor module (A, Figure 3-45) in clips in bezel guides (B).
(Figure 3-46)
Figure 3-46. Light Sensor Module Bezel Guides
2. Install IO Board.
