Acer A100 - WLAN Antenna Installation; WLAN Antenna Removal

Machine Maintenance Procedures 3-43
WLAN Antenna Removal 0
Prerequisite:
Mainboard Removal
1. Locate WLAN antenna (A). (Figure 3-60)

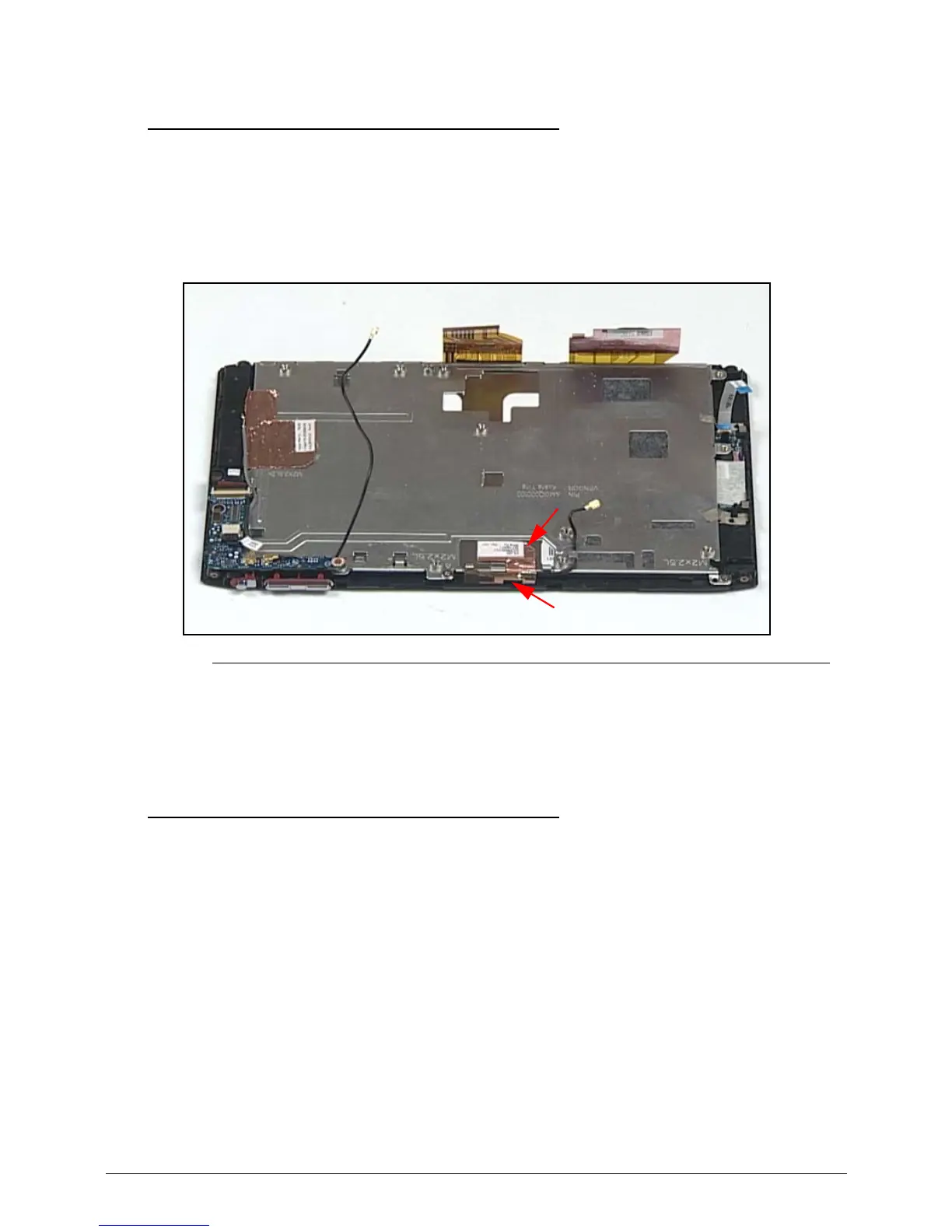

Figure 3-60. WLAN Antenna Overview
2. Release WLAN antenna foil (B) secured to support plate.
3. Remove WLAN antenna (A) from bezel.
WLAN Antenna Installation 0
1. Install WLAN antenna (A) on bezel. (Figure 3-60)
2. Secure WLAN antenna foil (B) on support plate.
3. Install mainboard.
A
B
