3-26 Machine Maintenance Procedures

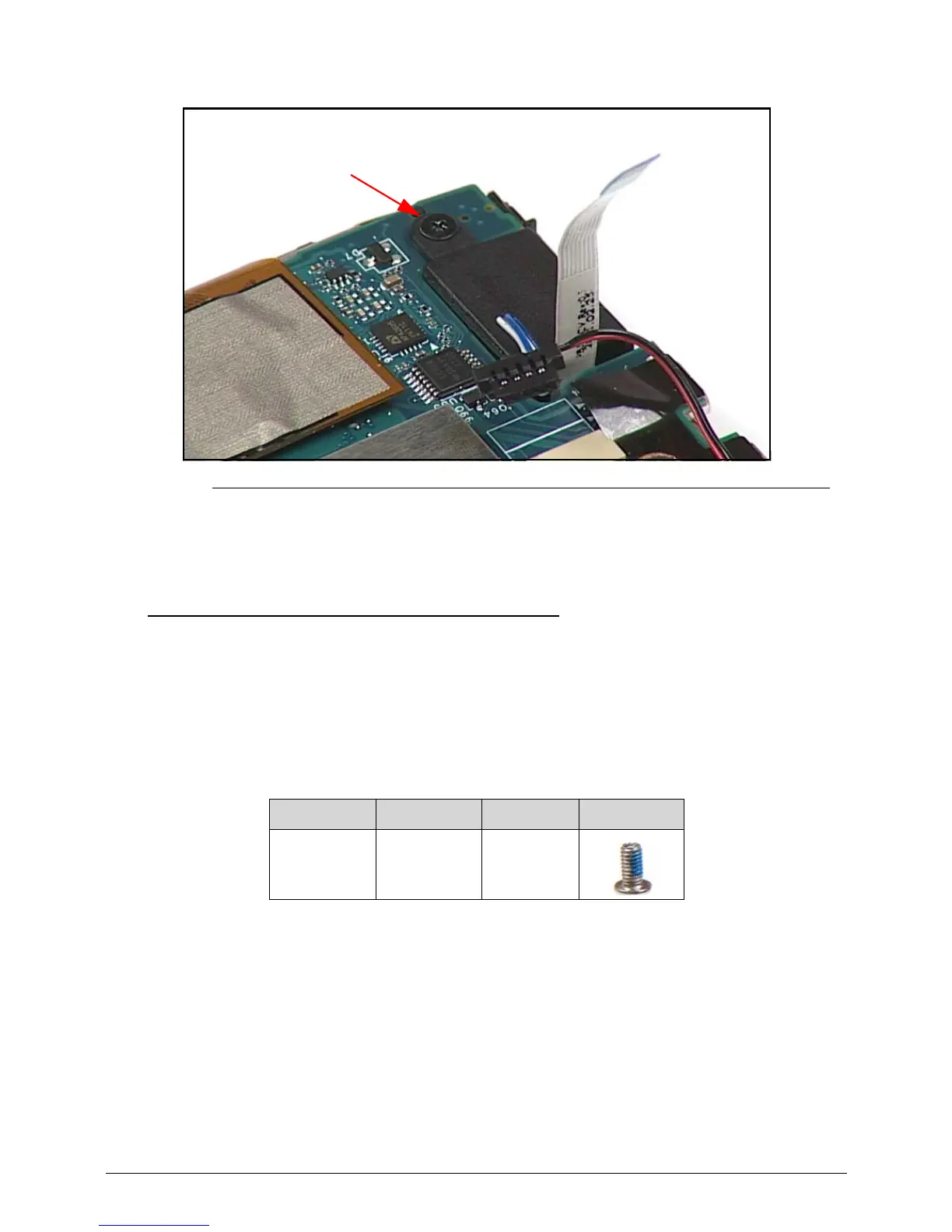

Figure 3-35. Speaker Module Screws (2 of 2)
5. Remove speakers from bezel.
Speakers Installation 0
1. Install speakers (A) on bezel. (Figure 3-31)
2. Install and secure screws (F) to support plate. (Figure 3-34 and Figure 3-35)
3. Connect speaker cable (D) to mainboard connector (E). (Figure 3-33)
4. Connect home key FFC (B) to mainboard connector (C). (Figure 3-32)
5. Install battery.
ID Size Quantity Screw Type
F M2.0x4.0 Ni 2
To Next Page
