Home Key Board Installation 0
1. Connect home key FFC (B) to board connector (C). (Figure 3-62)

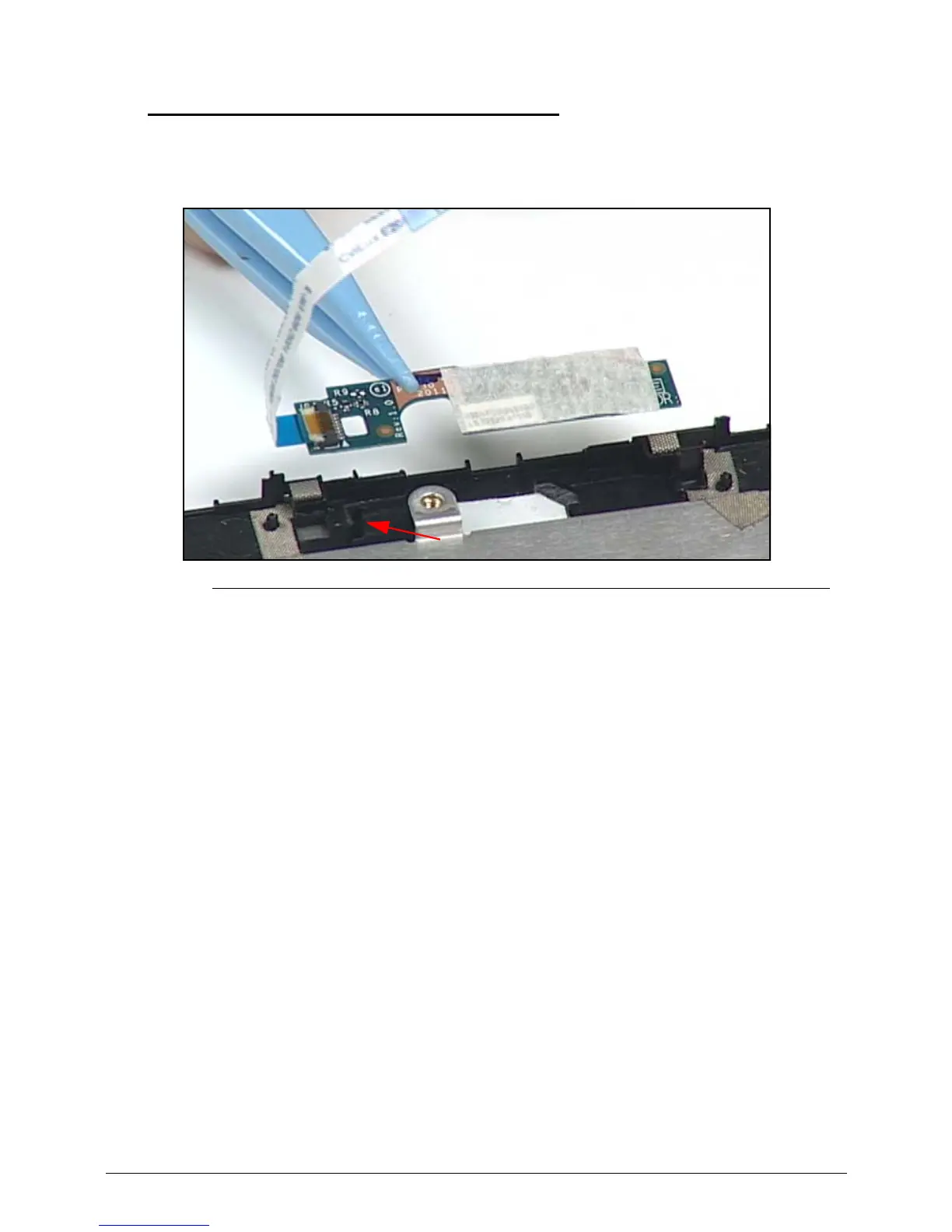

2. Align home key board with bezel guide (D). (Figure 3-63)
Figure 3-63. Home Key Board Bezel Guide
3. Install and secure home key board (A) to bezel. (Figure 3-61)
4. Install mainboard.
