Acer A100 - Battery Removal; G Module Removal

Machine Maintenance Procedures 3-19
3G Module Removal 0
Prerequisite:
Battery Removal
1. Locate 3G module (A) on LCD support plate. (Figure 3-25)

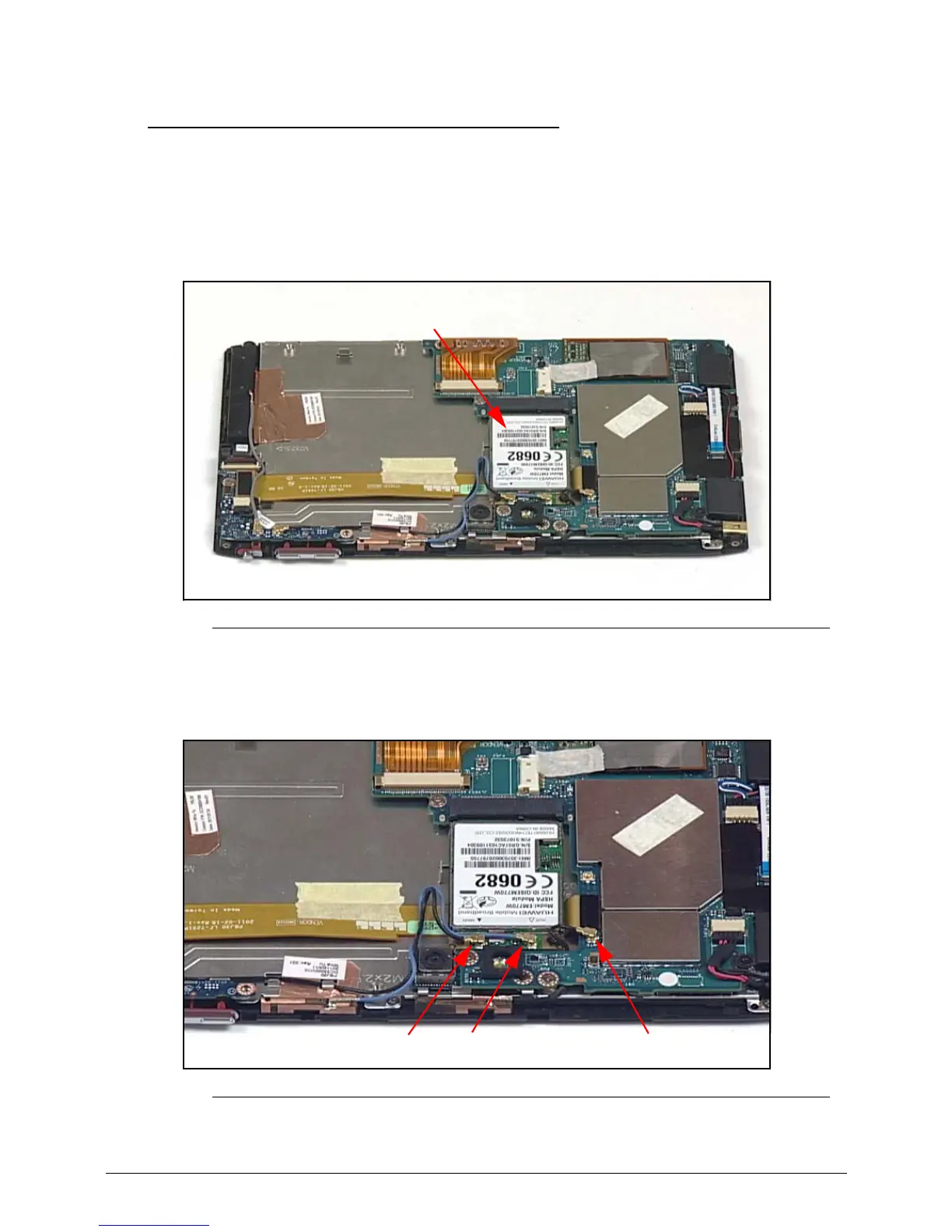

Figure 3-25. 3G Module Overview
2. Disconnect GPS (C) and RF (B) cables from 3G module connectors labeled aux and
main. (Figure 3-26)
Figure 3-26. 3G, RF and WLAN Cables
3. Disconnect WLAN main (D) cable from mainboard connector.(Figure 3-26)
A
BC D
