4. Disconnect and remove rear CCD board (A) from mainboard connector (C). (Figure 3-56
and Figure 3-57)

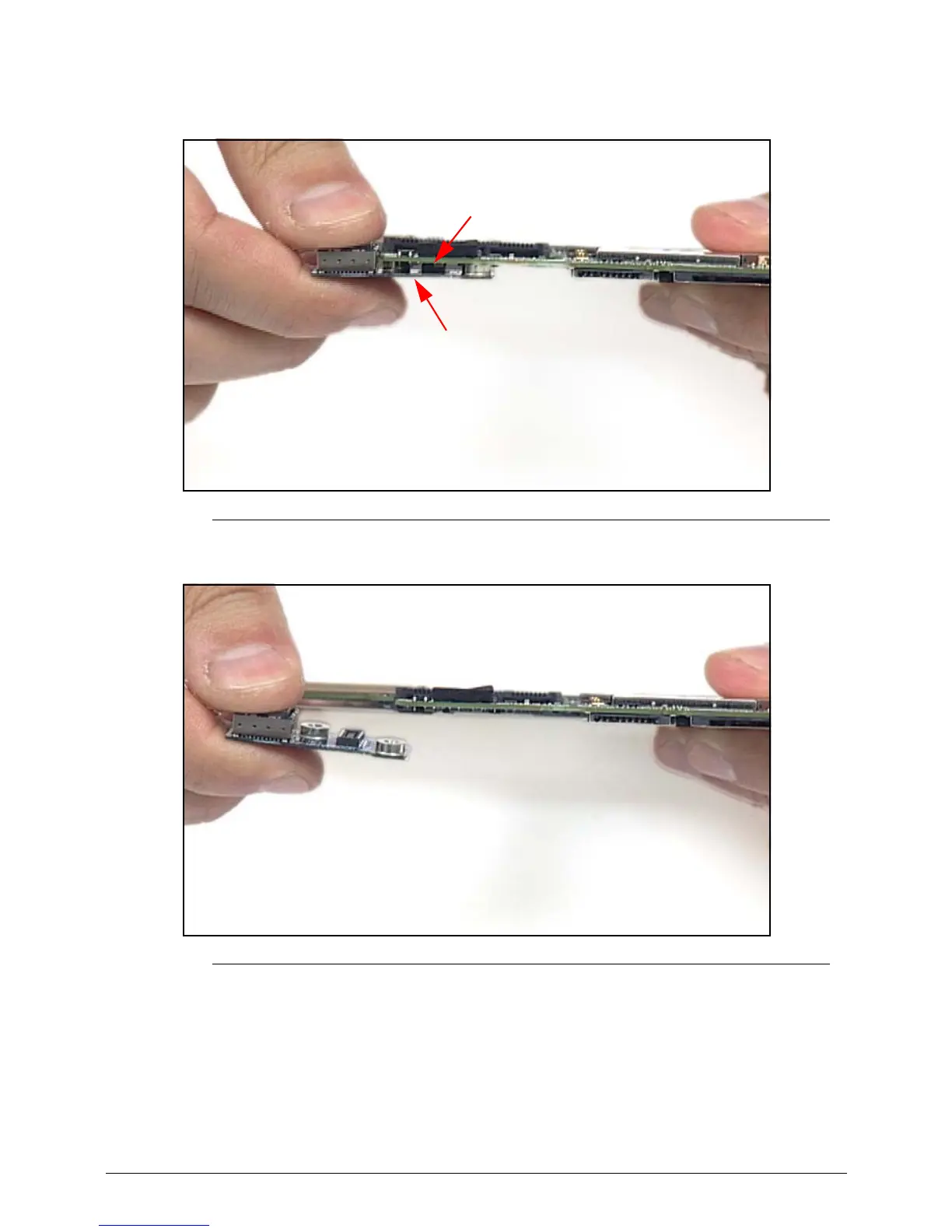

Figure 3-56. Removing Rear CCD Board (1 of 2)
Figure 3-57. Removing Rear CCD Board (2 of 2)
C
A
