Machine Maintenance Procedures 3-9
2. Rotate the device and continue to remove all the covers from the right, bottom and left
sides of the bezel. (Figure 3-9 through Figure 3-14)

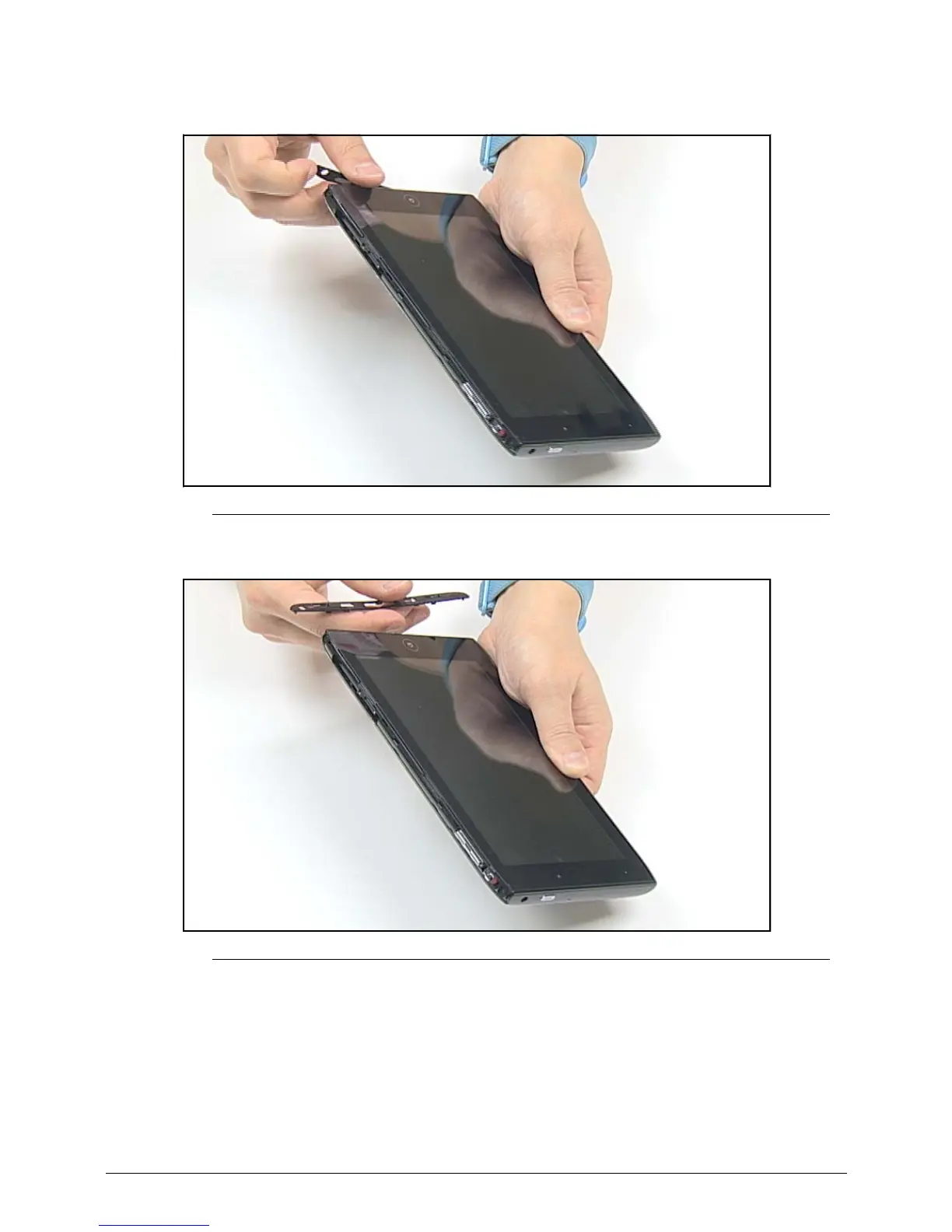

Figure 3-9. Releasing Right Cover (1 of 2)
Figure 3-10. Releasing Right Cover (2 of 2)
