3-22 Machine Maintenance Procedures
Bluetooth Module Removal 0
Prerequisite:
Upper Case Removal
1. Find the Bluetooth Module (A) on the lower case (Figure 3-20).
2. Disconnect the Bluetooth cable (B) from the mainboard connector (C).
3. Remove the Bluetooth Module (A) from the lower case.

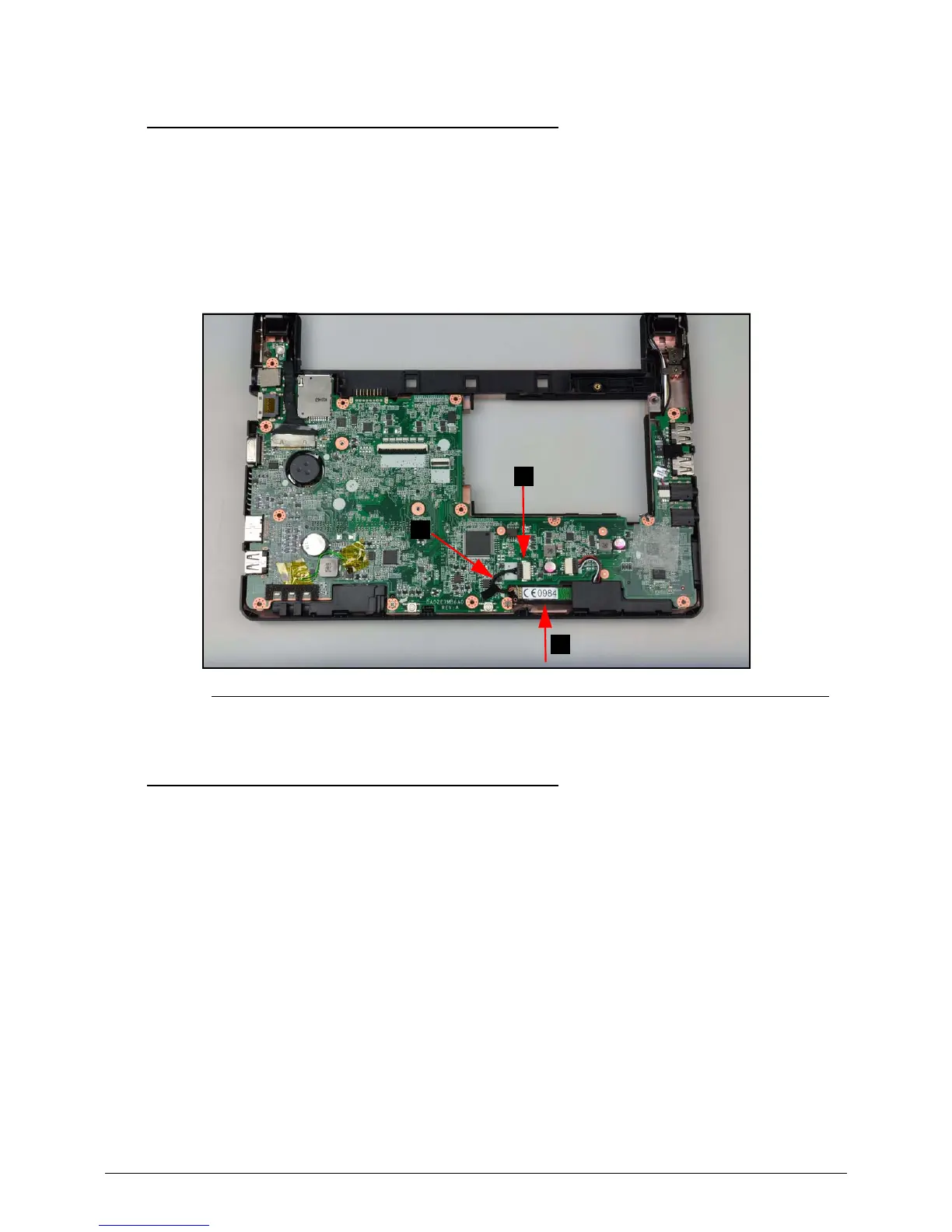

Figure 3-20. Bluetooth Module
Bluetooth Module Installation 0
1. Place the Bluetooth Module (A) on the lower case. Refer to Figure 3-20.
2. Connect the Bluetooth cable (B) to the mainboard connector (C) (Figure 3-20).
3. Install the upper case.
