Acer AOD270 - Base Cover Removal

3-12 Machine Maintenance Procedures
Base Cover Removal 0
Prerequisite:
Keyboard Removal

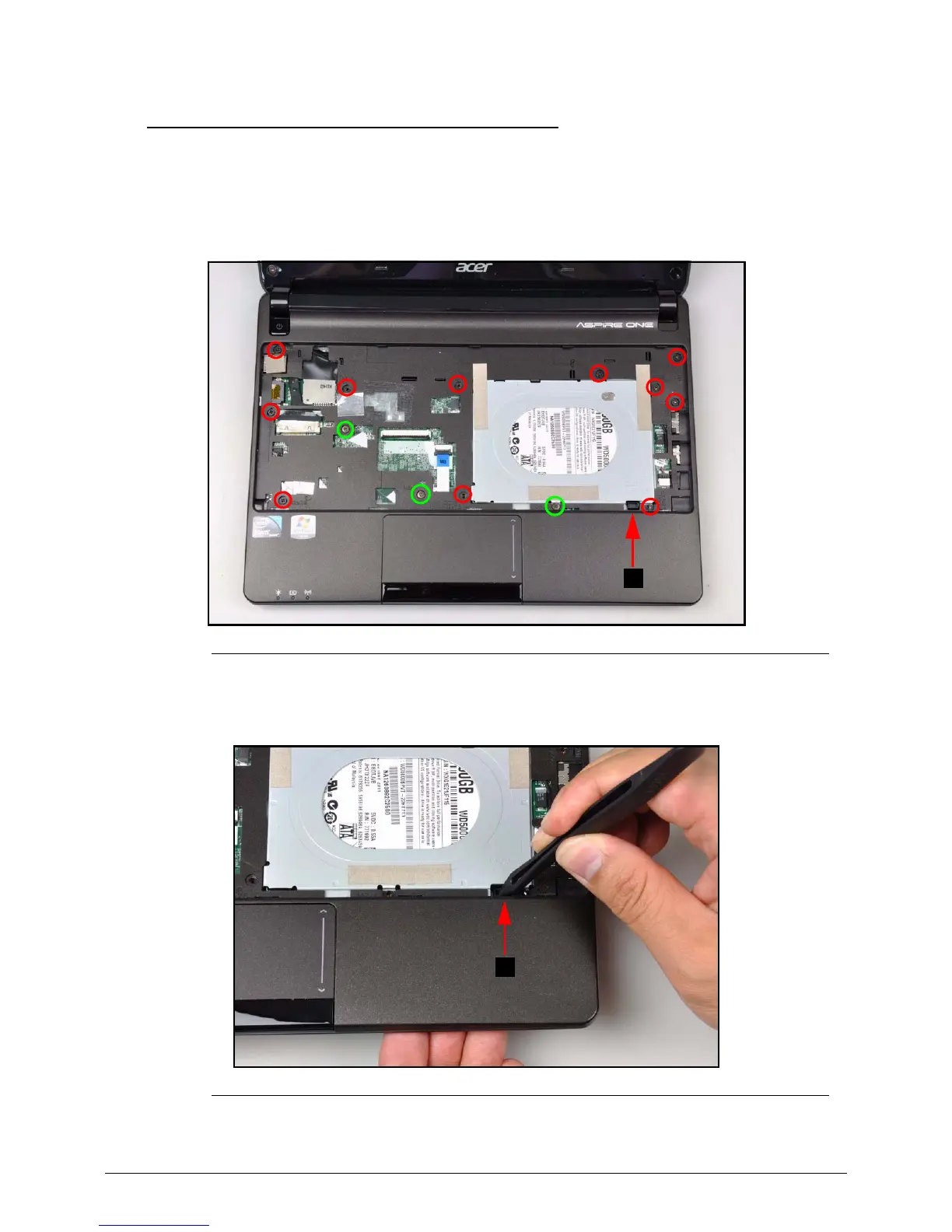

1. Remove fourteen (14) screws from the upper case (Figure 3-7).
Figure 3-7. Base Cover Screw Removal
2. Press downward on the tab (A) to release the base cover. (Figure 3-8).
Figure 3-8. Base Cover Tab Release
A
A
