Mainboard Removal 0
Prerequisite:
Bluetooth Module Removal
1. Find the mainboard (A) on the lower case (Figure 3-21).

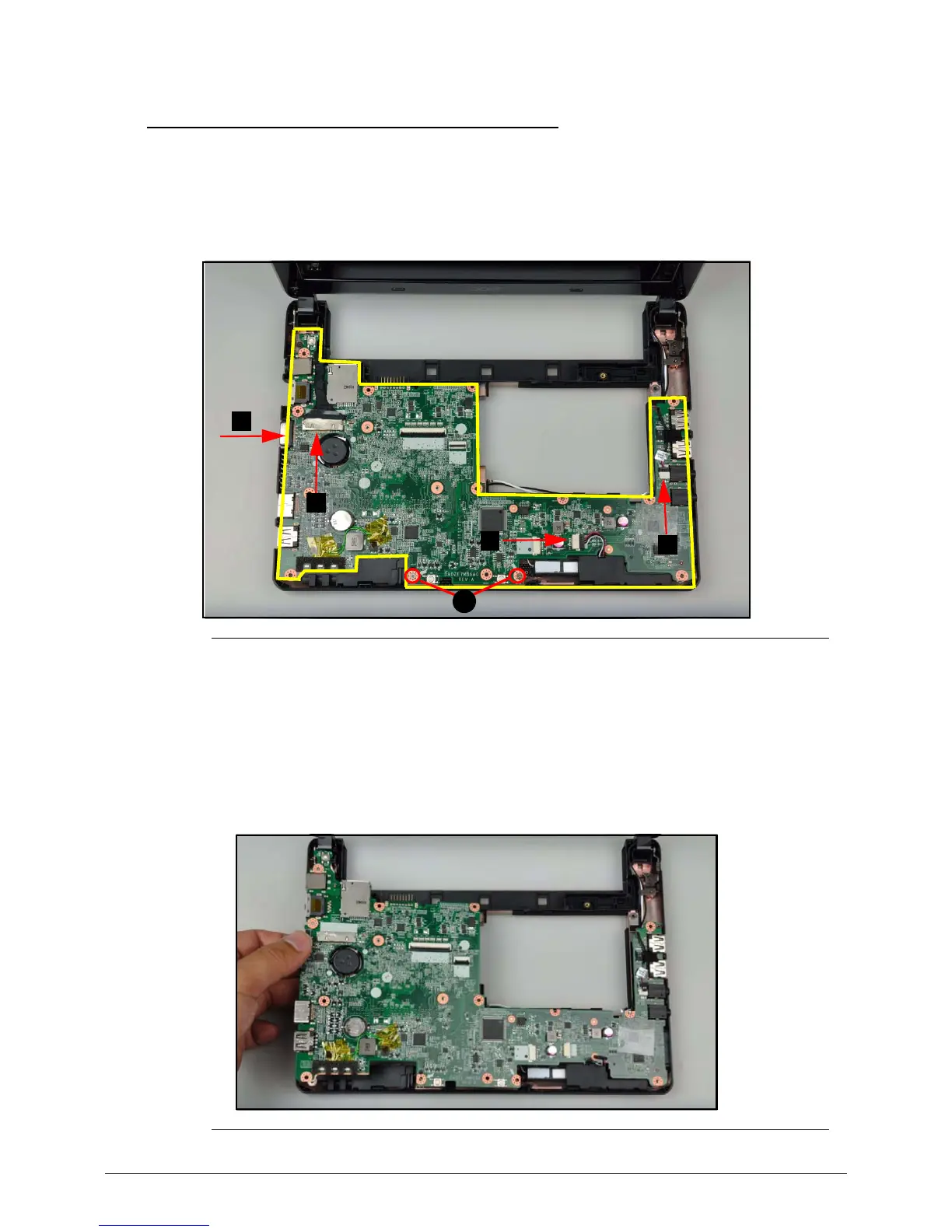

Figure 3-21. Mainboard
2. Disconnect the LVDS cable from the mainboard connector (B) (Figure 3-21).
3. Disconnect the speaker cable from the mainboard connector (C) (Figure 3-21).
4. Disconnect the microphone cable from the mainboard connector (D) (Figure 3-21).
5. Remove two (2) screws (E) from the mainboard (Figure 3-21).
6. Remove the mainboard by gently lifting it from the lower case (Figure 3-22).
Figure 3-22. Mainboard Removal
B
C
D
E
A
