3G Module Removal 0
Prerequisite:
Base Cover Removal
1. Find the 3G module (B). Refer to Figure 3-10.
2. Disconnect main (A) and auxiliary (B) antenna cables from module (Figure 3-14).

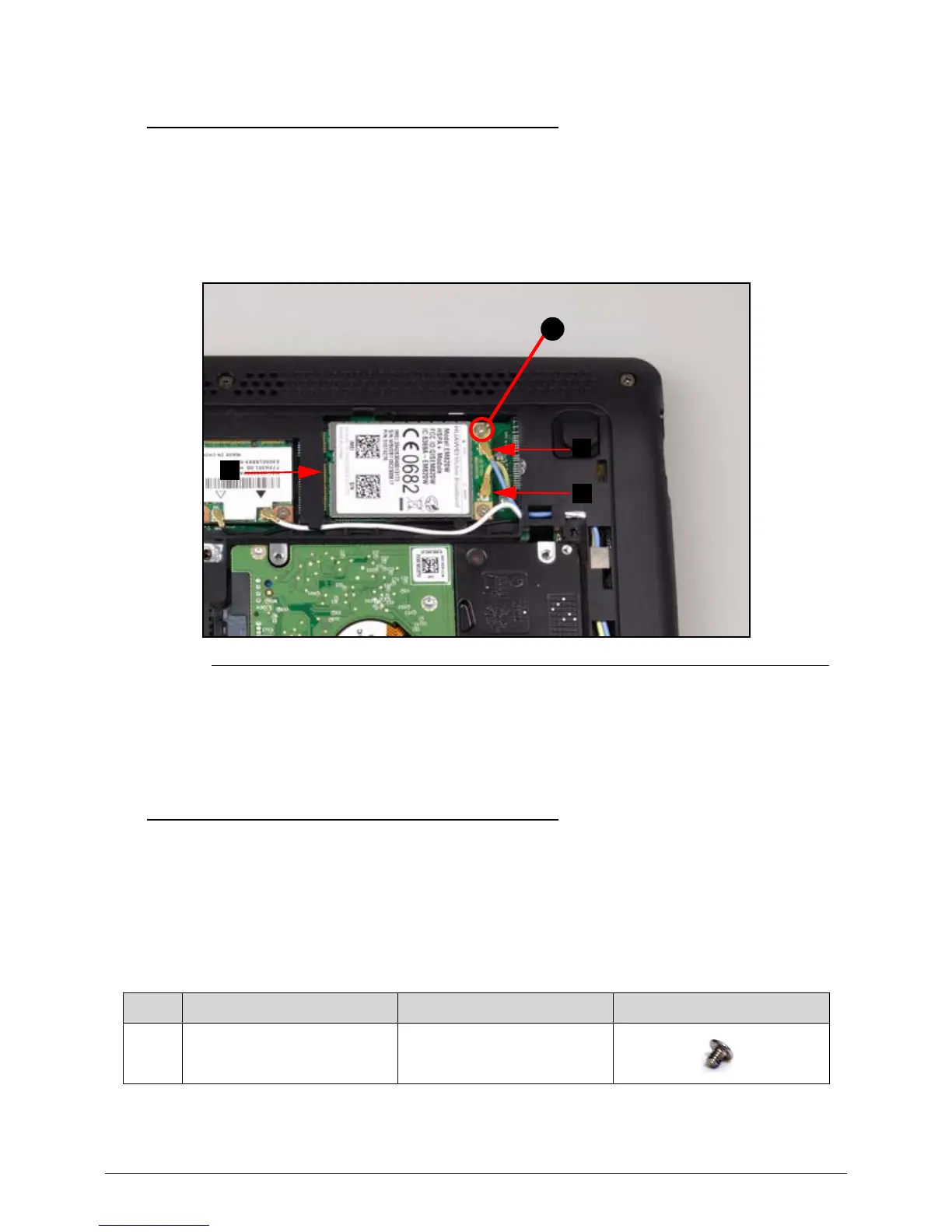

Figure 3-14. 3G Module
3. Remove one (1) screw (C) from the mainboard. Refer to Figure 3-14.
4. Remove the 3G module from the mainboard connector (D). Refer to Figure 3-14.
3G Module Installation 0
1. Place the 3G module into the mainboard connector (D). Refer to Figure 3-14.
2. Install and secure one (1) screw (C) to mainboard. Refer to Figure 3-14.
3. Install the main (A) and auxiliary (B) antenna cables on 3G module. Refer to
Figure 3-14.
4. Install the base cover.
ID Size Quantity Screw Type
C M2.0*3.0 NI 1
