Acer AOD270 - LCD Hinge Removal; LCD Hinge Installation

Machine Maintenance Procedures 3-35
LCD Hinge Removal 0
Prerequisite:
LCD Bezel Removal
1. Find the LCD hinges (B) on the LCD module (Figure 3-33).
2. Remove the four (4) screws (A) (Figure 3-35).

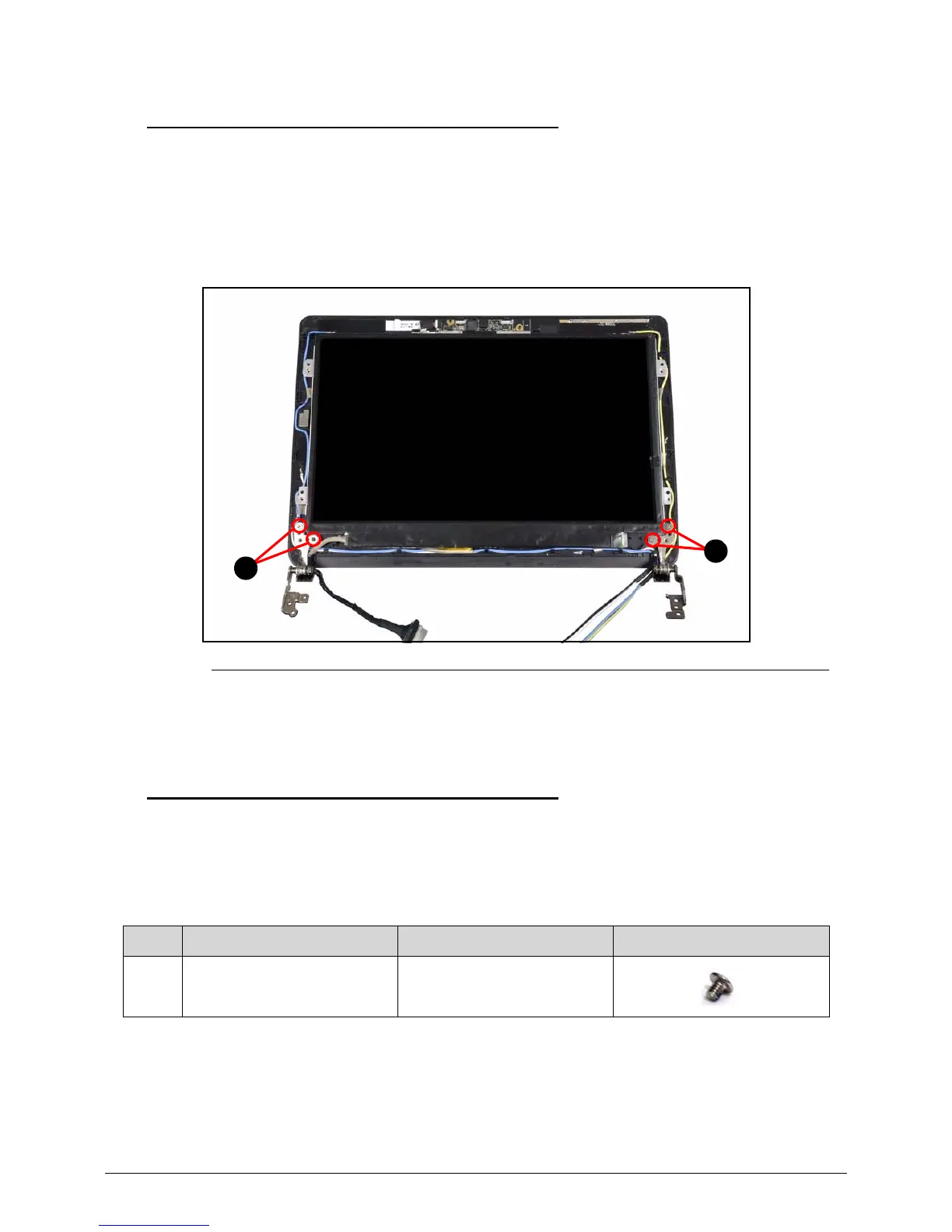

Figure 3-35. LCD Hinges
3. Remove LCD hinges from the LCD module.
LCD Hinge Installation 0
1. Place the LCD hinges on the LCD module (Figure 3-35).
2. Install and secure the four (4) screws (A) to the LCD hinges (Figure 3-35).
3. Install the LCD bezel.
ID Size Quantity Screw Type
A M2.0*3.0 NI 4
A
A
