Acer AOD270 - Mainboard Jumper and Connector Locations

Jumper and Connector Locations 5-3
Jumper and Connector Locations
Mainboard Jumper and Connector Locations 0

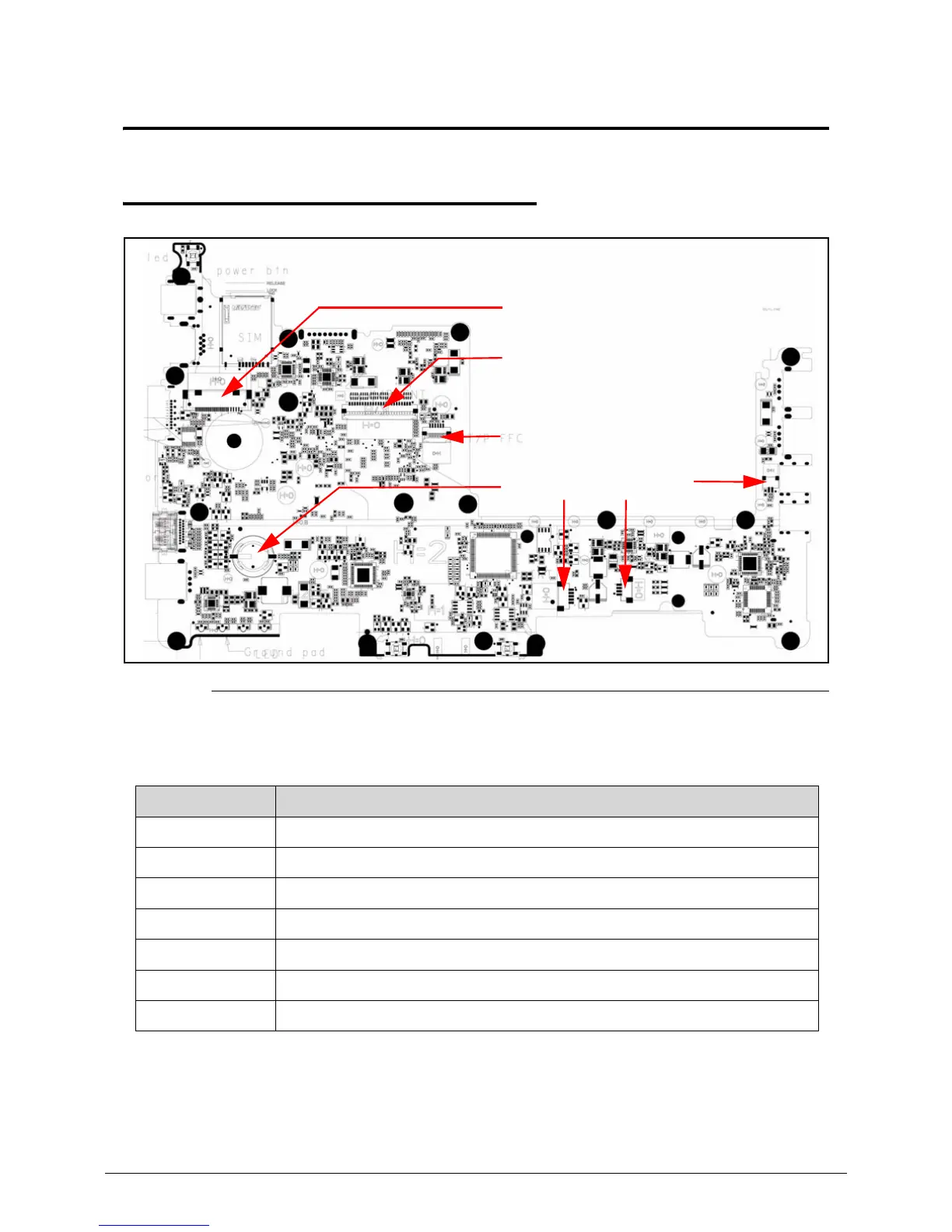

Figure 5-1. Mainboard Top
Table 5-1. Mainboard Top
Item Description
1 LVDS Connector
2 Keyboard Connector
3 Touchpad Connector
4 RTC Connector
5 Bluetooth Connector
6 Speaker Connector
7 Microphone Connector
1
1
2
3
4
56
7
