5-4 Jumper and Connector Locations

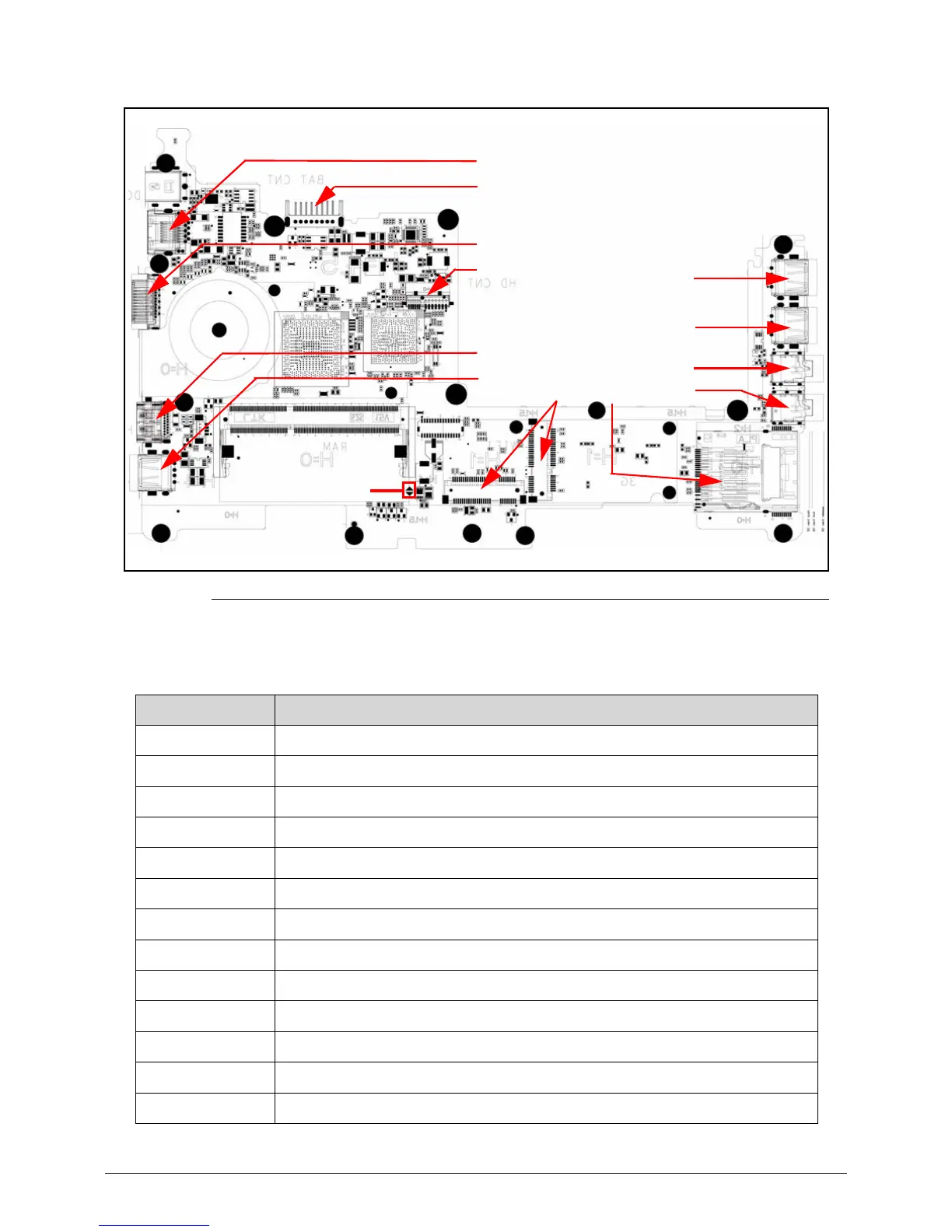

Figure 5-2. Mainboard Bottom
Table 5-2. Mainboard Bottom
Item Description
1 LAN Connector
2 Battery Connector
3 VGA Connector
4 HDD Connector
5 HDMI Connector
6 USB Connector
7 Mini Card Connector
8 Card Reader Connector
9 Headphone/SPDIF Connector
10 Microphone Connector
11 USB Connector
12 USB Connector
A CMOS Jumper
1
2
3
4
5
6
7
8
9
10
11
12
A
