3. Remove the hard drive as shown in Figure 3-12.

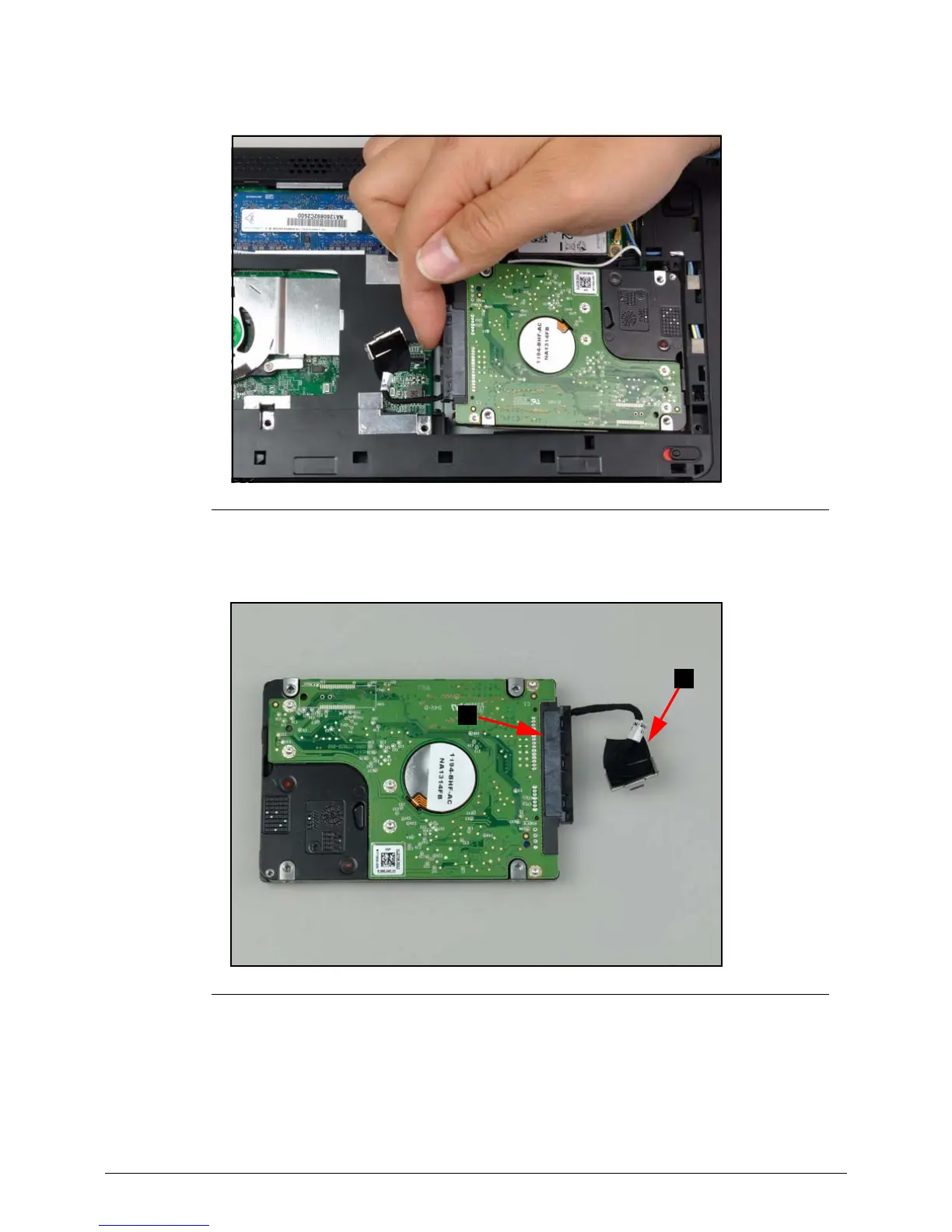

Figure 3-12. Hard Drive Removal
4. Disconnect the hard drive FPC (C) from the hard drive connector (D) (Figure 3-13).
Figure 3-13. Hard Drive FPC Removal
E
D
