Acer e-mill 3VS - Page 23

- 22 -
e-mill 3VK
A
B
C
D
E
F
Min.
56"
11 1/4"
2 1/2"
1
4"
1422mm
285mm
64mm
102mm
Max.
88"
78"
35 1/4"
18 1/2"
18"
27"
2235mm
1981mm
895mm
470mm
458mm
686mm

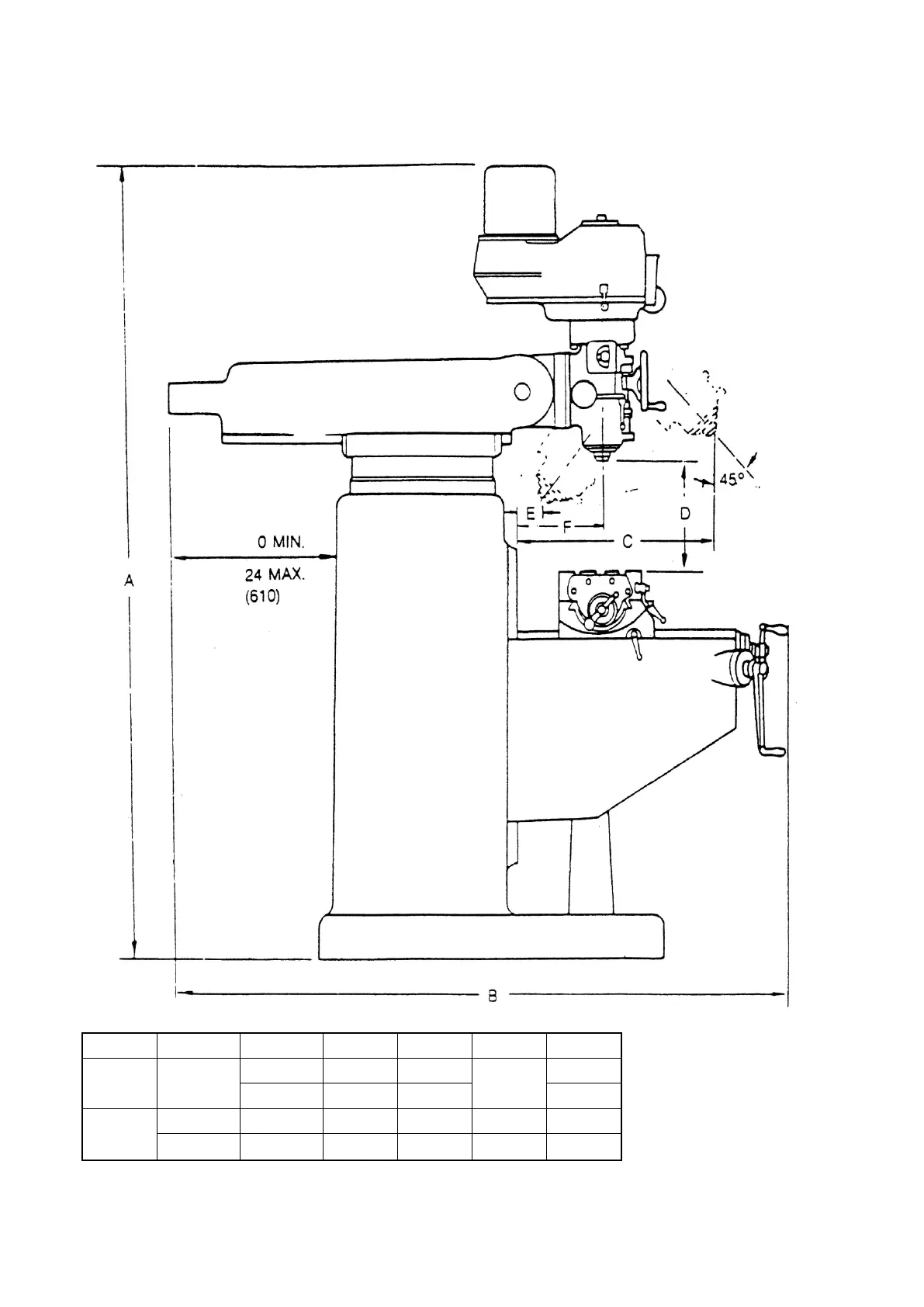

Figure 2. Principal Dimension of 3VK
