Removing the Inverter Board
1. Remove the LCD Bezel. See “Removing the LCD Bezel” on page 89.

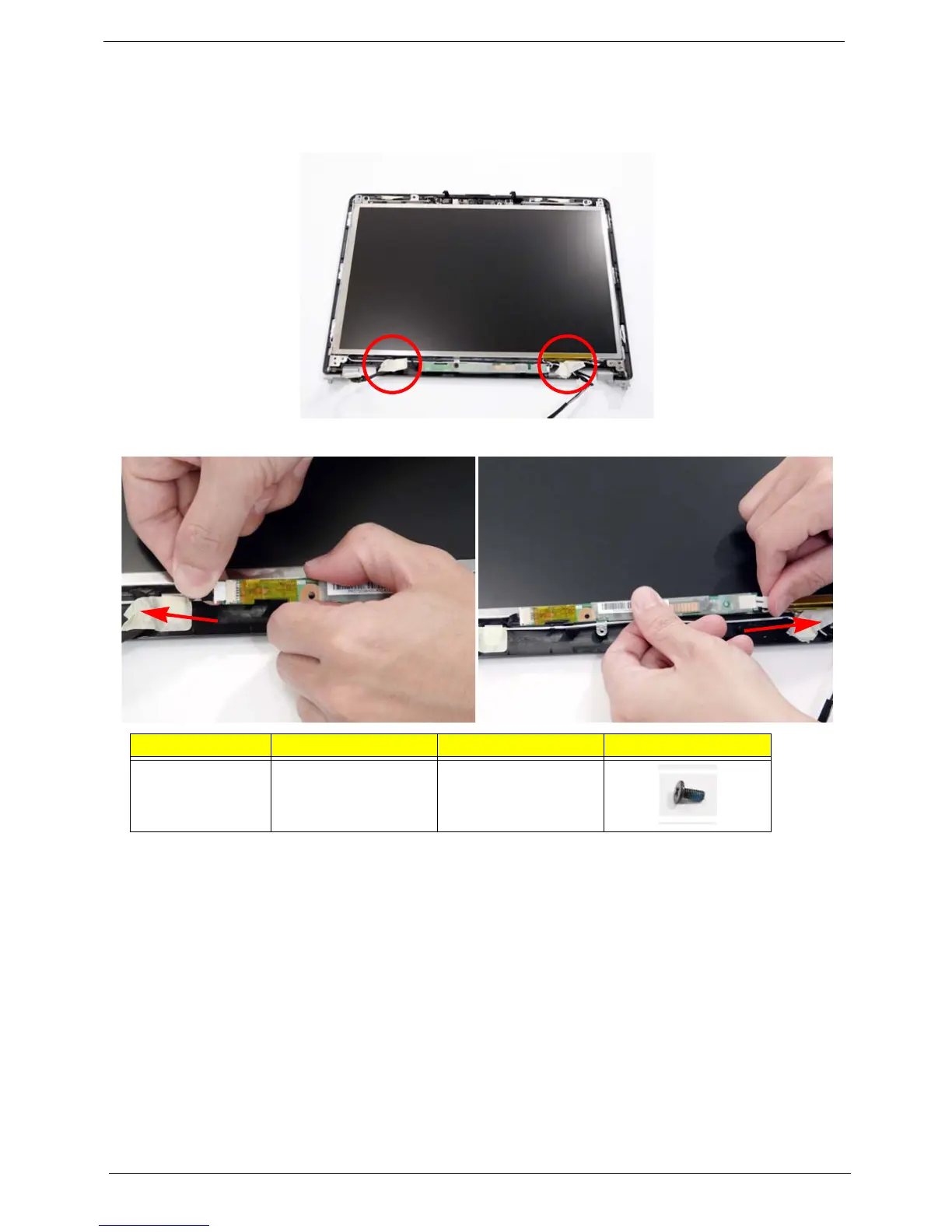

2. Remove the securing tapes from the left and right sides of the Inverter board as shown.
3. Remove the two securing screws from the Inverter board and lift the board clear of the LCD Module.
4. Remove the Inverter Board from the LCD Module.
Step Size Quantity Screw Type
Inverter Board M2.5*6 (NL) 2
