Acer Extensa 4630G - Removing the Bluetooth Module

Chapter 3 77

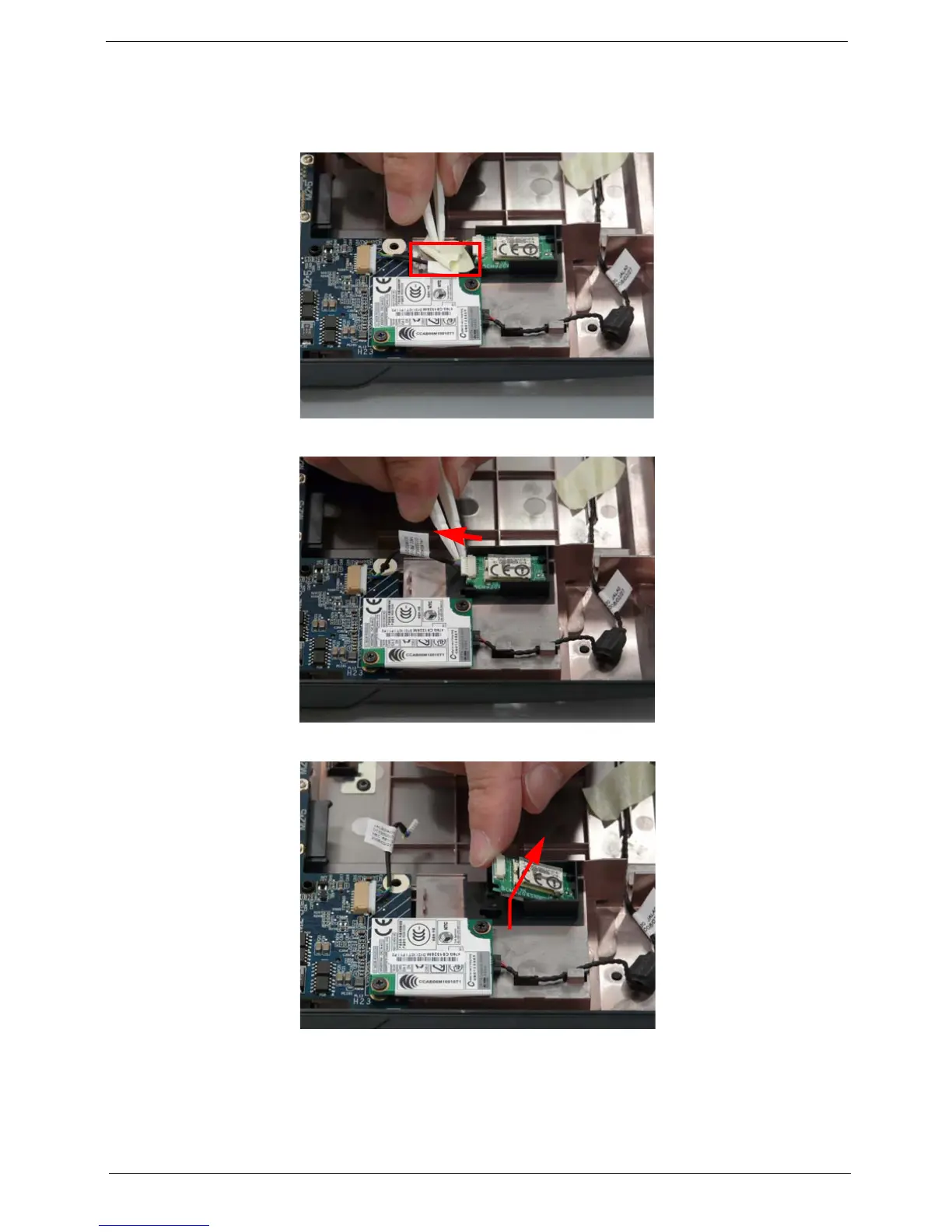

Removing the Bluetooth Module
1. See “Removing the Upper Cover” on page 67.
2. Remove the adhesive strip to expose the Bluetooth cable.
3. Disconnect the bluetooth cable as shown.
4. Lift the corner of the module up, then grasp to remove.
