Chapter 3 79
Removing the Mainboard
1. See “Removing the LCD Module” on page 65.
2. See “Removing the Upper Cover” on page 67.
3. See “Removing the Modem Module” on page 78.

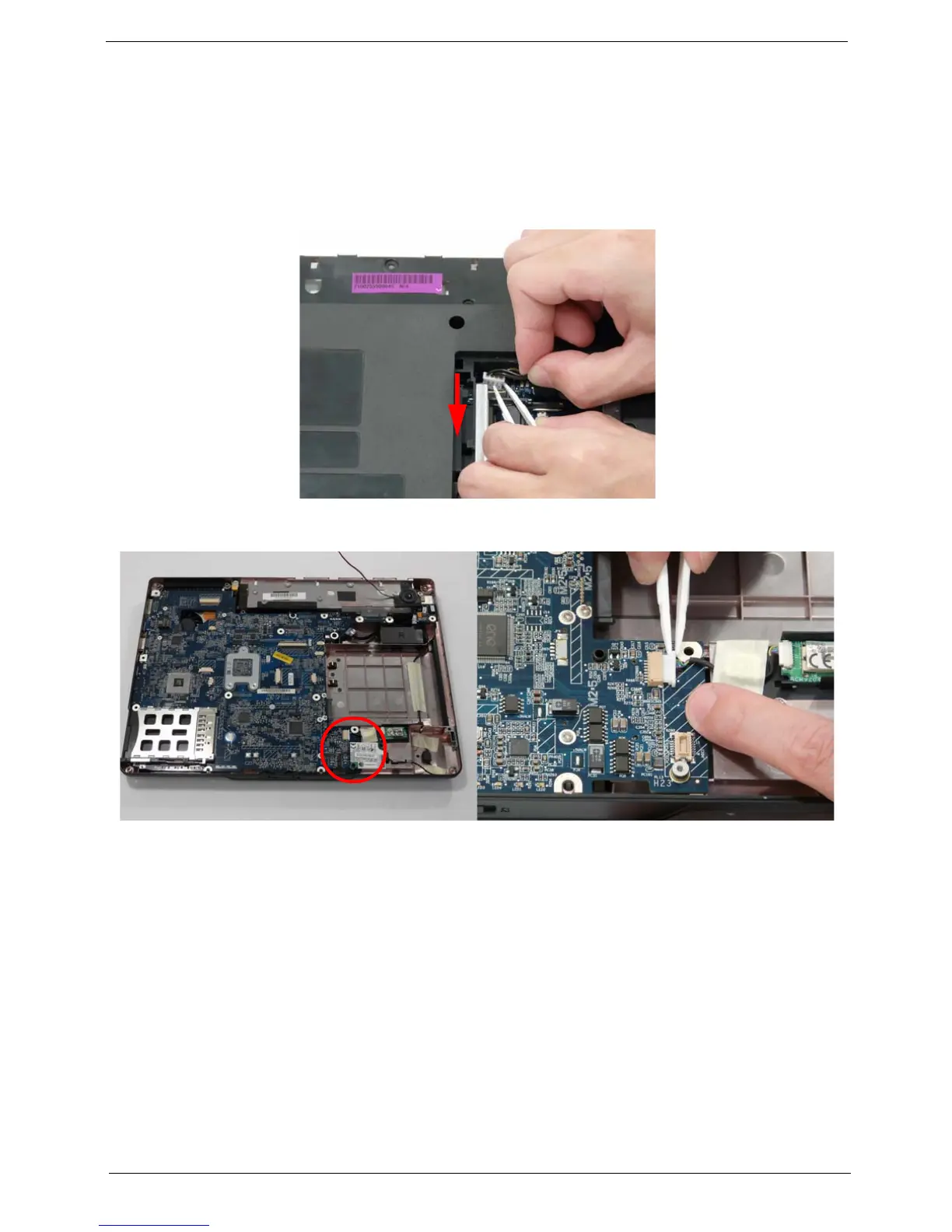

4. Turn the lower base over on a clean surface, and disconnect the DC-IN cable as shown.
IMPORTANT:Ensure the cable can easily pass through the lower cover during mainboard disassembly.
5. Turn the base rightside up, and disconnect the bluetooth cable from the bottom right of the mainboard as
shown.
