Acer Extensa 4630G - LCD Module

Chapter 6 151

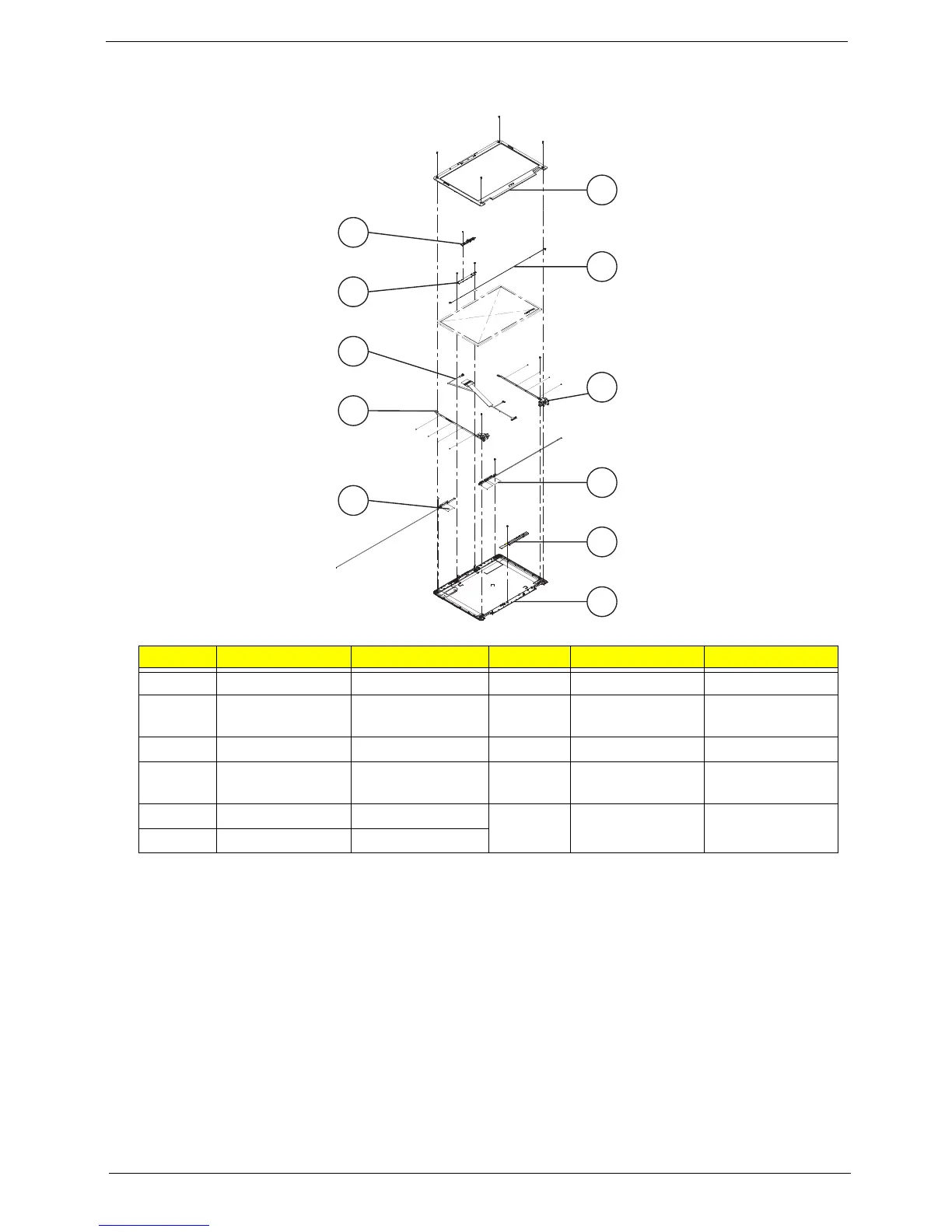

LCD Module
Item Description Part No. Item Description Part No.
1 Camera Module 57.TQ602.001 7 MIC Cable 23.TQ602.004
2 Camera Bracket 33.TQ602.006 8 LCD Bracket
Right
33.TQ602.004
3 LCD Cable 50.TQ602.009 9 Antenna Right 50.TQ602.006
4 LCD Bracket
Left
33.TQ602.005 10 Inverter Board 19.TQ602.001
5 Antenna Left 50.TQ602.007 11 LCD Module LK.14105.019
6 LCD Bezel 60.TQ602.005
1
2
3
4
5
6
7
8
9
10
11
