Acer Extensa 4630G - Main Unit Disassembly Process; Main Unit Disassembly Flowchart

58 Chapter 3
Main Unit Disassembly Process

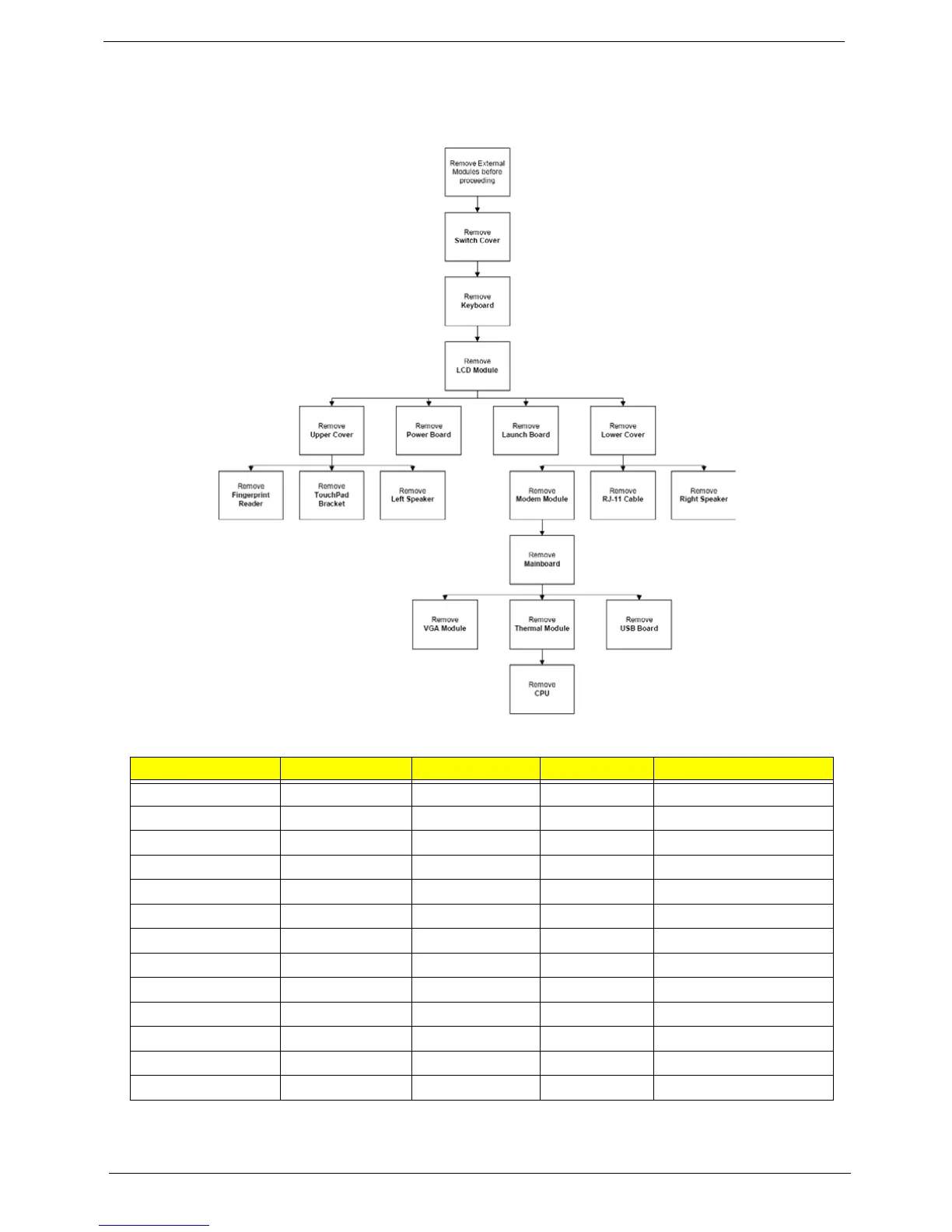

Main Unit Disassembly Flowchart
Screw List
Step Screw Quantity Color Part No.
Switch Cover M2*3 (NL) 2 MA0000060G0
LCD Module M2.5*8(NL) 4 MA000005YG0
LCD Module M2.5*5 (NL) 2 MA000007YG0
Upper Cover M2.5*8 (NL) 8 MA000005YG0
Upper Cover M2.5*5 (NL) 7 MA000007YG0
Touch Pad Bracket M2*3 (NL) 2 MA0000060G0
Launch Board M2*3 (NL) 2 MA0000060G0
Speaker M2*3 (NL) 4 MA0000060G0
I/O Board M2.5*5 (NL) 1 MA000007YG0
Bluetooth Board M2*3 (NL) 1 MA0000060G0
Modem Module M2*3 (NL) 2 MA0000060G0
Mainboard M2.5*5 (NL) 1 MA000007YG0
Thermal Module M2*6.5 4 MA0000096G0
