Chapter 5 145

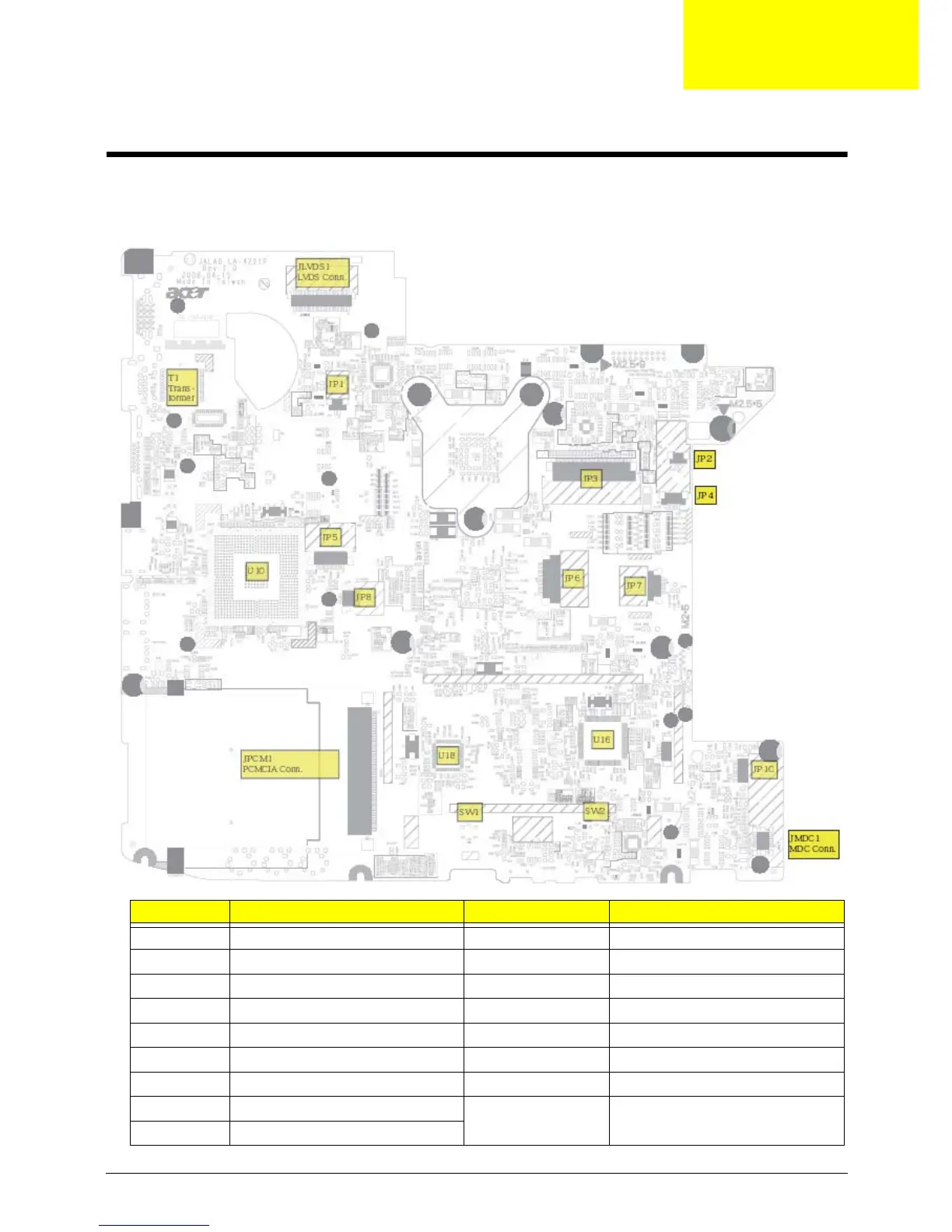

Jumper and Connector Locations
Top View
Location Description Location Description
JP1 Internal Speaker Conn. (Left) JLVDS1 LVDS Conn.
JP2 Internal Speaker Conn. (Right) JMDC1 MDC Conn.
JP3 Internal K/B Conn. JPCM1 PCMCIA Conn.
JP4 Internal Mic. Conn. (analog) SW1 Touch Pad button (Left)
JP5 Function Board Conn. SW2 Touch Pad button (Right)
JP6 Button Board Conn. U10 South Bridge ICH9M
JP7 Touch Pad Board Conn. U18 Clock Generator ICS
JP8 Finger Printer Board Conn. U16 EC/ KBC ENE KB926
JP10 Bluetooth Conn.
Chapter 5
