64 Chapter 3

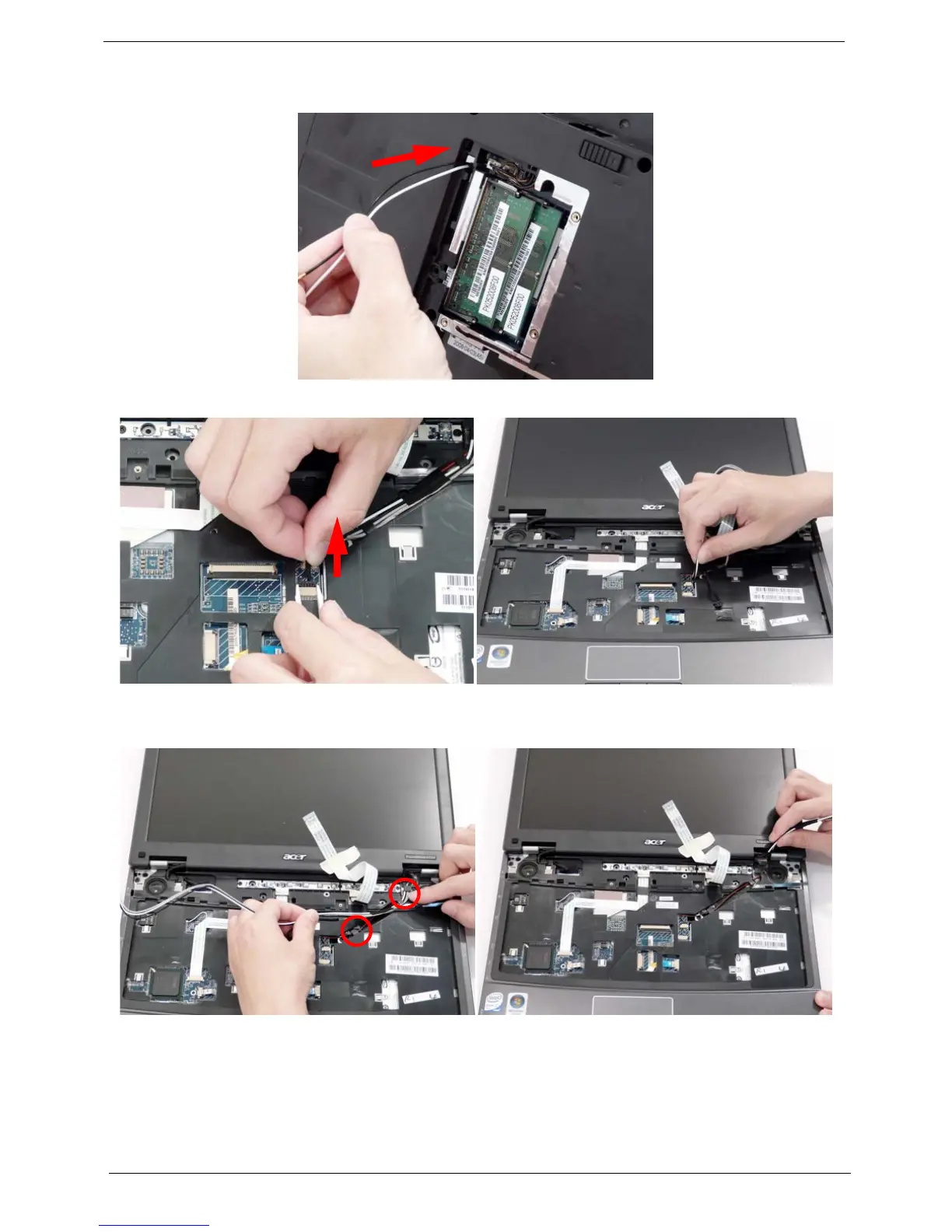

4. Secure the FFC cable out of the way using the adhesive tape.
5. Turn the computer over and push the cables through the underside of the chassis.
6. Turn the computer over, and remove the cable from the mainboard as shown.
7. Remove the Antenna Cables from the housing well as shown.
NOTE: Place the cables to one side to avoid damage.
