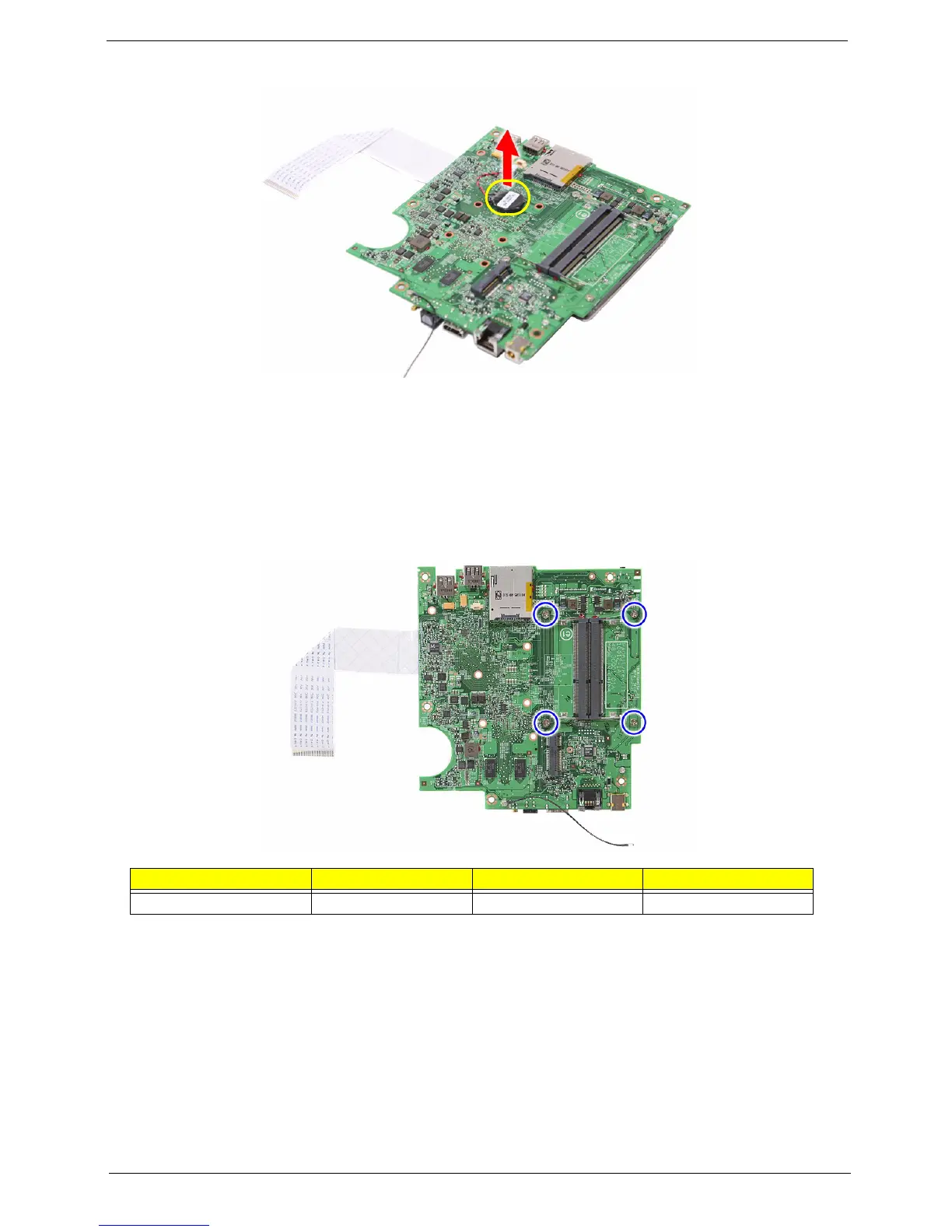

3. Remove the battery.
NOTE: The battery has been highlighted with a yellow circle in the previous image. Detach the battery and
follow the local regulations for disposing it.
Removing the Hard Disk Drive
1. See “Removing the Mainboard” on page 39.
2. Remove the four screws (B) securing the hard disk drive module.
Screw (Quantity) Color Torque Part No.
MECH TRUSS M3*L4 NI (4) Silver 4.5 0.3 kgf-cm 86.3A534.4R0
