Acer RL100 - Mainboard Layout; Top View

60 Chapter 5

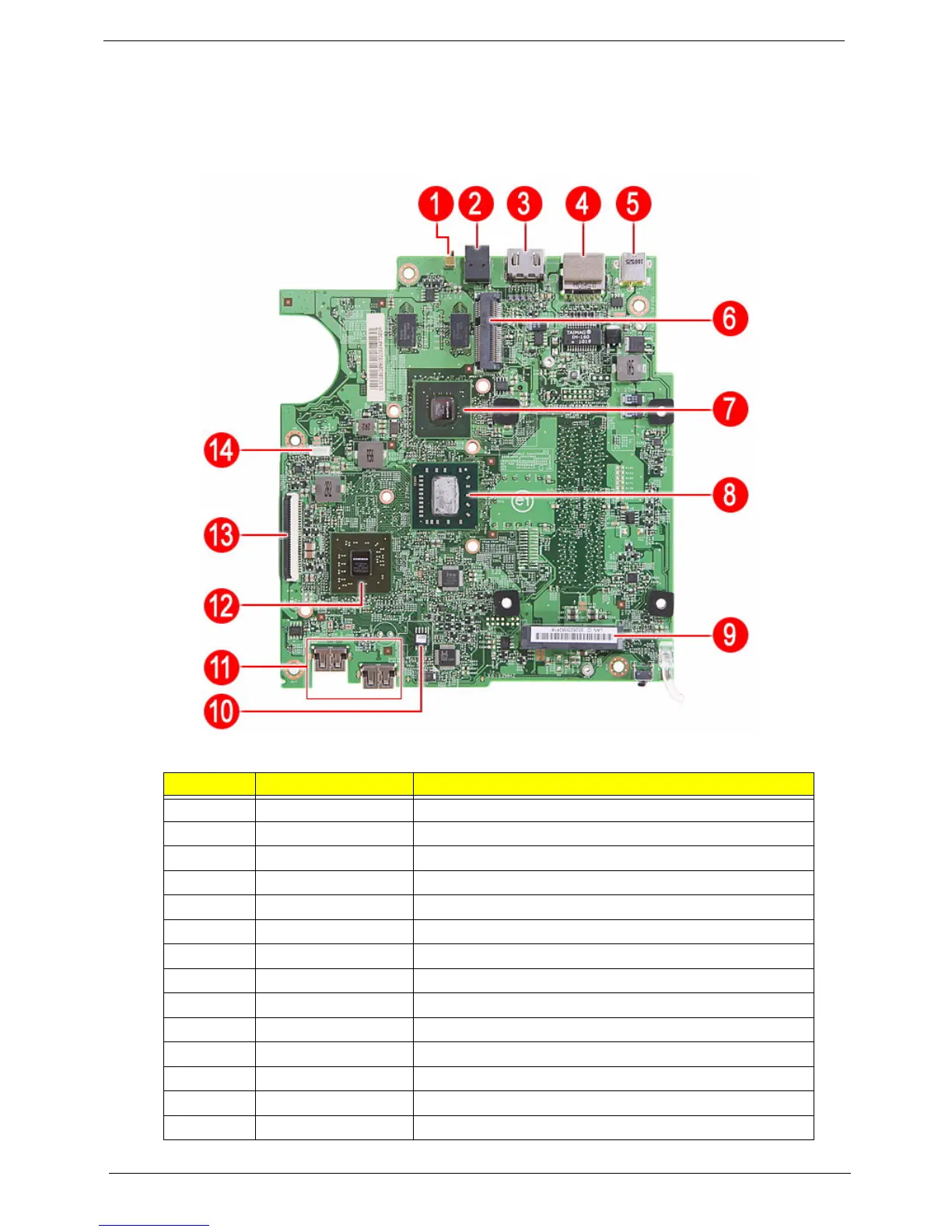

Mainboard Layout
Top view
No Code Description
1 JK2 Aerial connector
2 SKT4 S/PDIF connector
3 CN5 HDMI connector
4 RJ1 LAN connector
5 JK1 Power adapter connector
6 SKT6 WLAN module connector
7 U4 N11M-PT1
8 U7 AMD ASB2 CPU
9 SKT3 2.5” HDD connector
10 BIOS SPI ROM
11 SKT1 and SKT2 USB ports
12 U9 NForce MCP61
13 CN4 I/O board cable connector
14 CPUFAN1 CPU fan power connector
