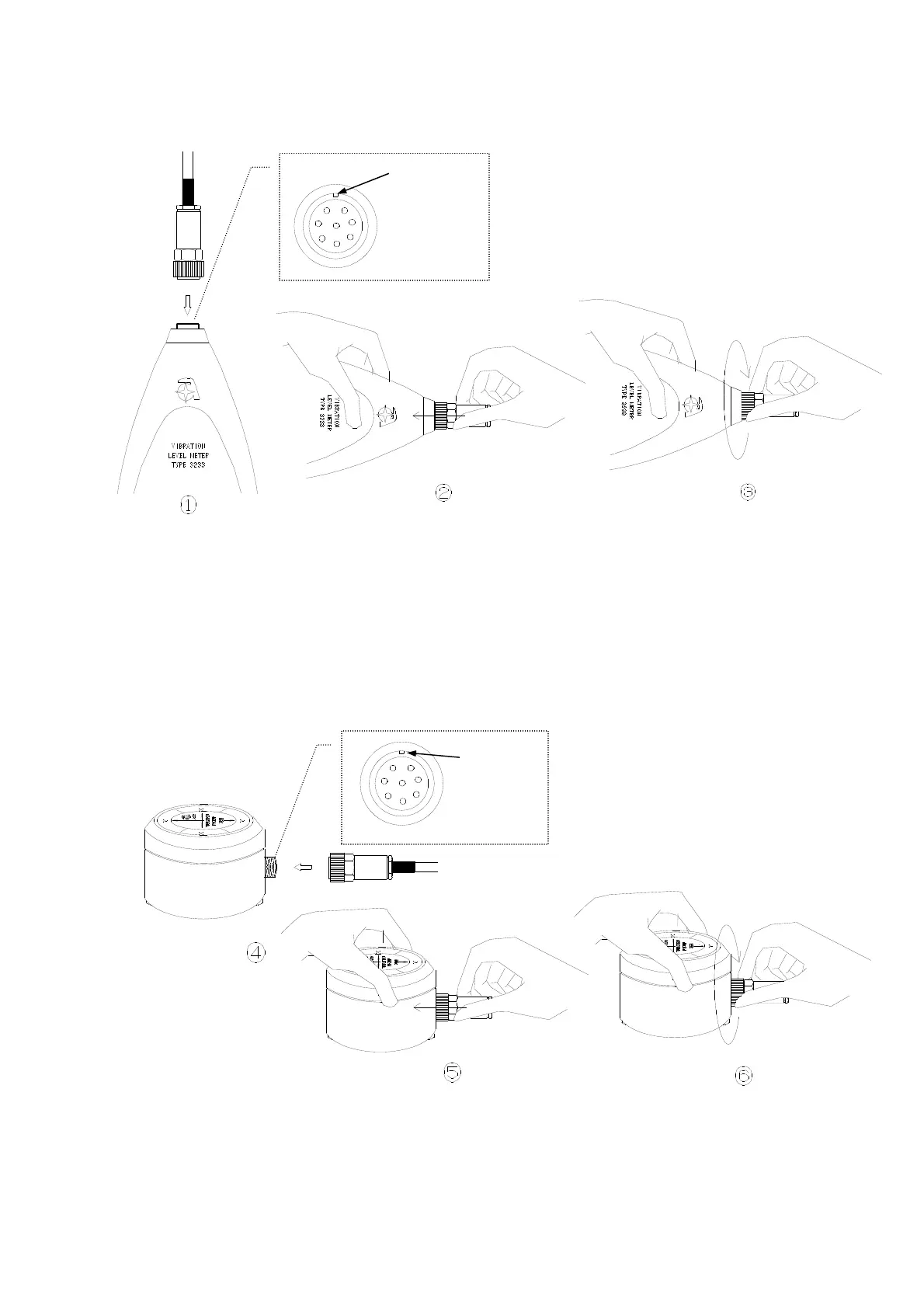

Pin Connections and How to Connect the Extension cable
1) Plug the male connector of extension cable into the connector of the body.
2) Attach Pick-up to the female connector of extension cable.
Mach key
④Mach key groove of body’s connector with the connector of extension cable and insert.
⑤Push the connector of extension cable.
⑥Turn the threaded retaining ring a little as shown repeat ⑤ and ⑥ 5-8 times and you
can connect.
※
Note; Do not turn only the threaded retaining ring connecting.
It causes damage to the connector.
Mach key
①Mach key groove of body’s connector with the connector of extension cable and
insert.
②Push the connector of extension cable.
③Turn the threaded retaining ring a little as shown repeat ② and ③ 5-8 times
and you can connect.
