MOUNTING AND WIRING 4-21
SB1391 Hardware and Setup Guide - Document revision no. 1.14

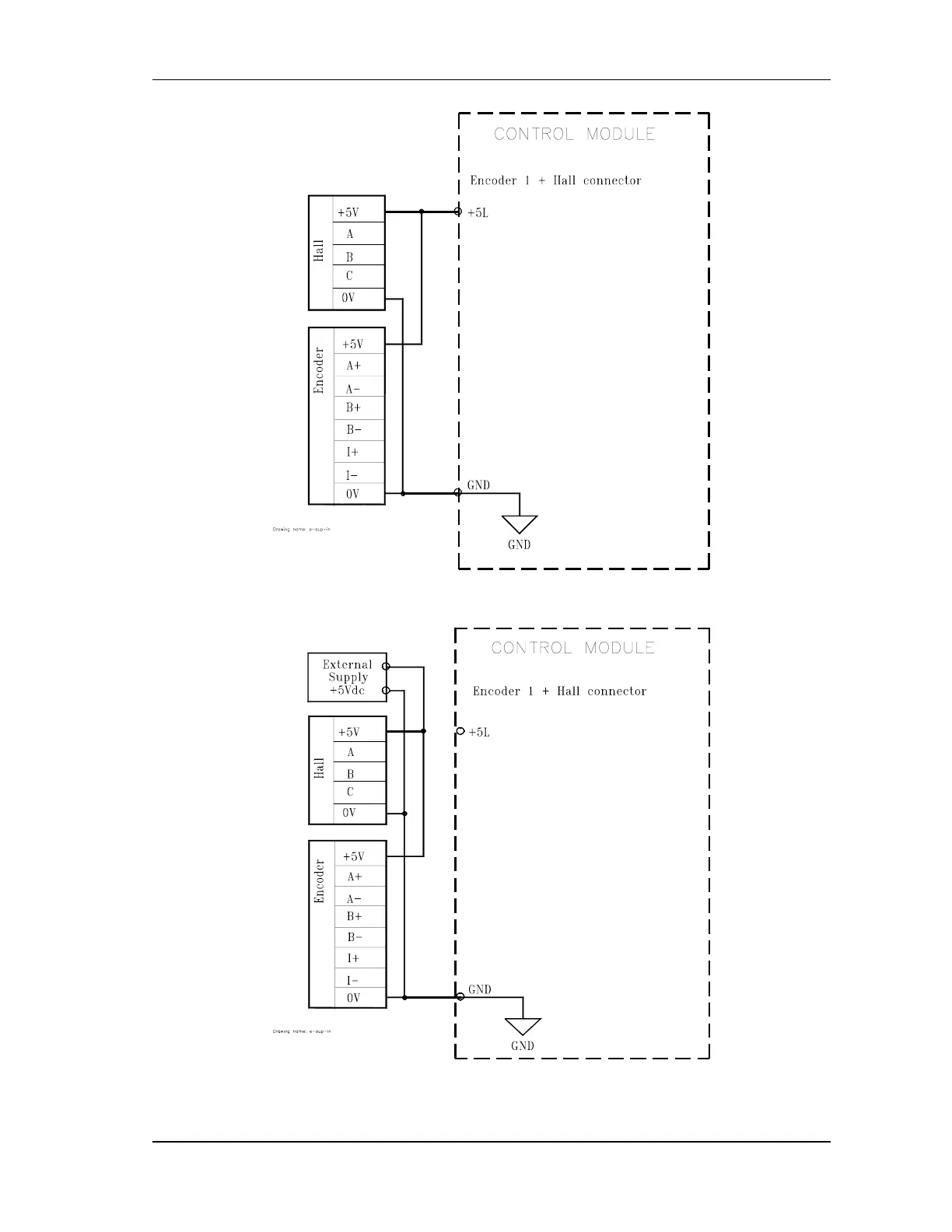

FIGURE 4-18 Internal 5Vdc supply connection for encoder and Hall
FIGURE 4-19 External 5Vdc supply connection for encoder and Hall
