4-20 MOUNTING AND WIRING
SB1391 Hardware and Setup Guide - Document revision no. 1.14

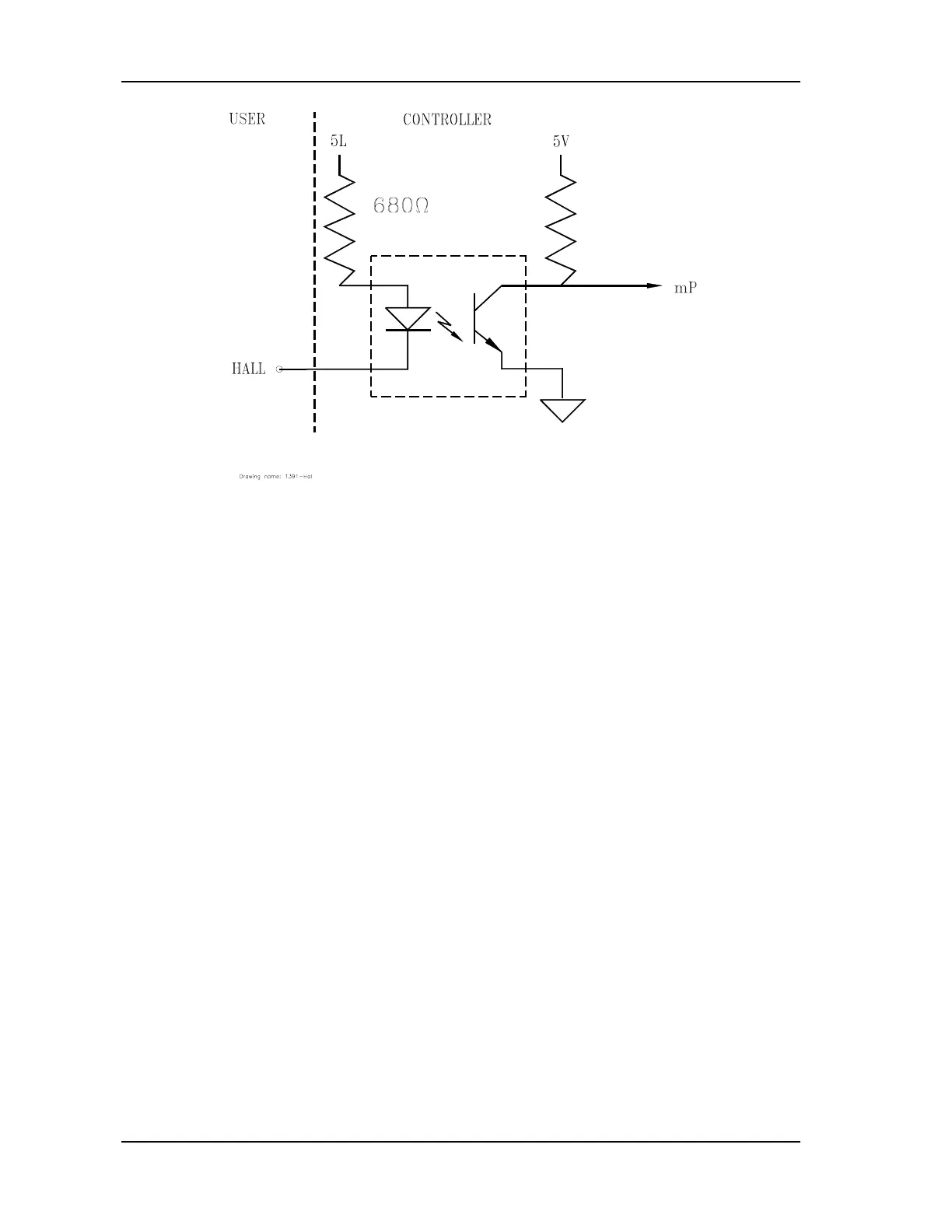

FIGURE 4-17 Hall sensors connection
4.4.3.3. Supply for Encoder and Hall
The encoder and the Hall sensors can be powered by the on-board +5L (5V). The total current
consumption must not exceed 0.75A. If the total +5L current consumption (all encoders + Hall)
exceeds 0.75A, then an external supply must be used. In such a case, the return of the supply must
be connected to GND pin.
