Before each exam, it is necessary to apply to the cone a disposable protective cover designed to cover the end part of
the X-ray generator.
Such protection has two functions: avoid cross contamination (from patient to patient) and prevent the possibility of
inflammations or other types of reactions of the skin caused by contact with the material that constitutes the cone.
2.3 OPTIONAL ACCESSORIES
|The system LIGHT (X-ray signaling lamp for external use)
|The system ECB (remote control button)
2.4. OVERALL DIMENSIONS

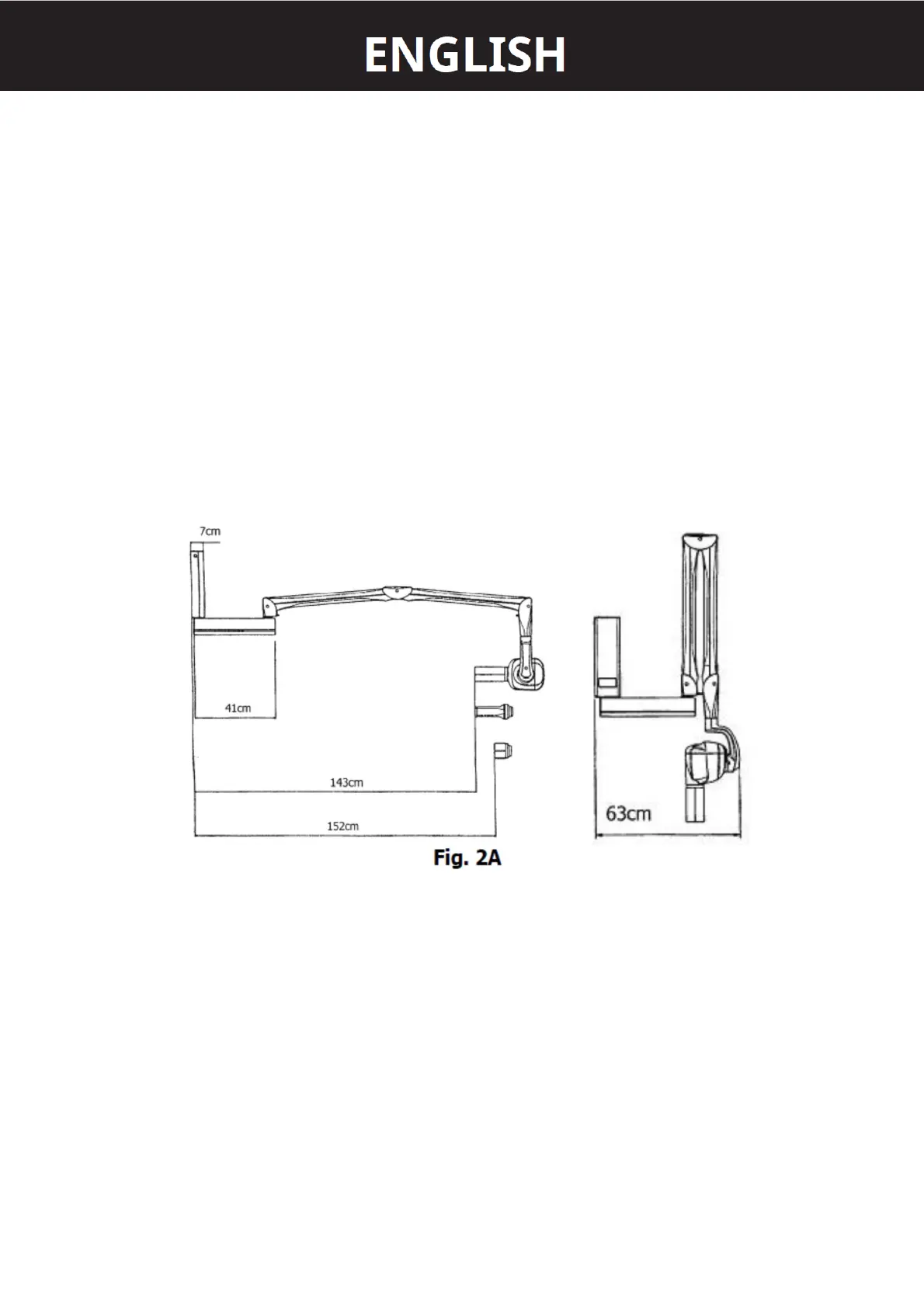

Fig. 2A, 2B, 2C give the overall dimensions of the possible supply conditions:
BRACKET 400: L = 41 cm – 16” 9/64
BRACKET 800: L = 82,5 cm – 32” 31/64
BRACKET 1100: L = 110 cm – 43” 5/16
BRACKET 400
BRACKET 800
