PLEASE NOTE

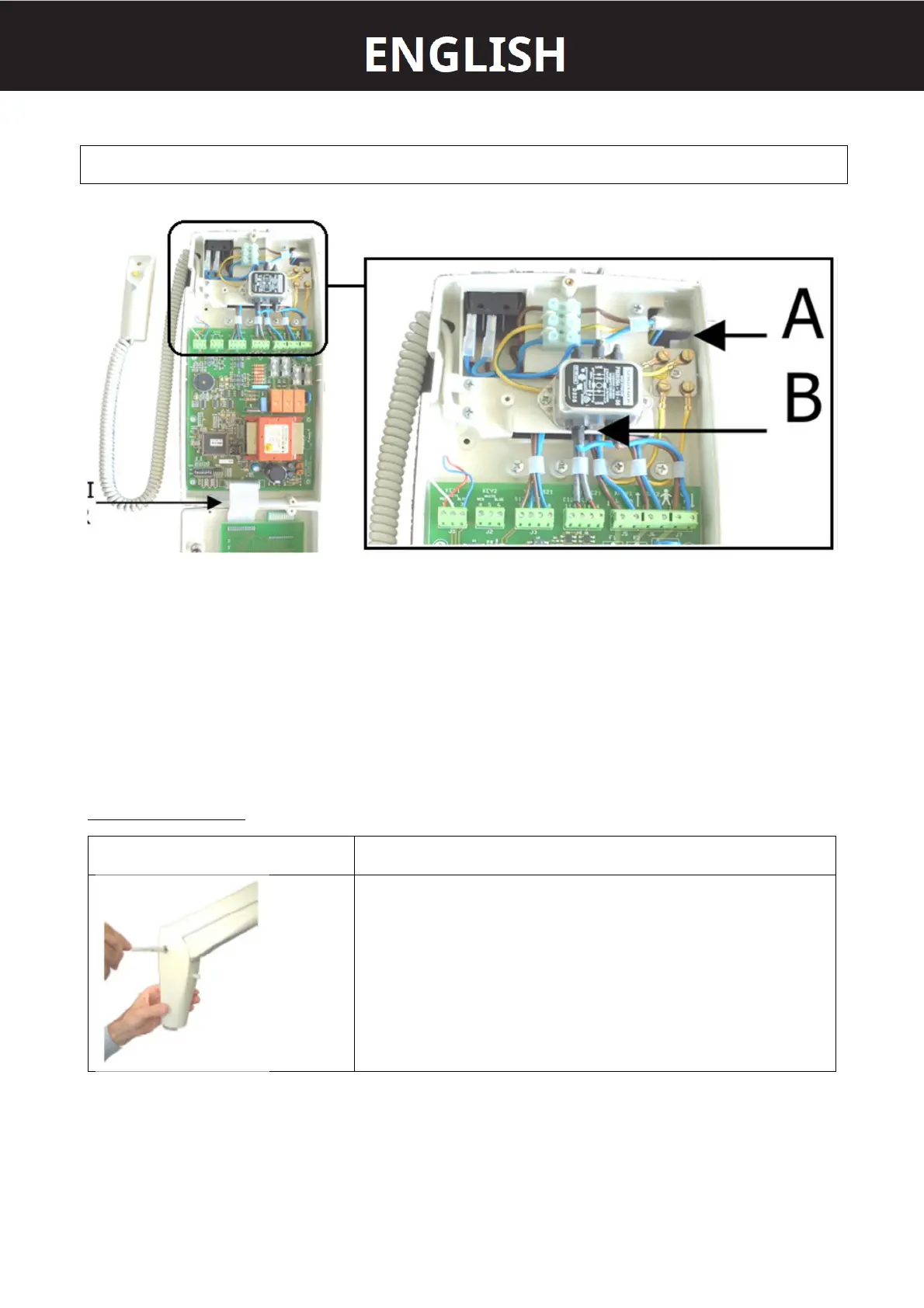

The use of the slots A or B for the cables is arbitrary; use the slots which adapt better to the specific
configuration of installation.
4.7. ASSEMBLING THE TUBEHEAD
ASSEMBLY INSTRUCTION
1. Take from the packaging the tubehead.
2. Check that all the rating data match the power supply voltage.
3. Remove both guards from the pantograph type arm by loosening the
relevant screws.
