Acteon x-mind dc - Balancing the Pantograph Arm

INSTALLATION & MAINTENANCE MANUAL • X-MIND DC • (06) • 10/2018 • NXDCEN020F
Pag. 27 of 51
9. Couple the pantograph and tubehead connections and fit the into their
seats.

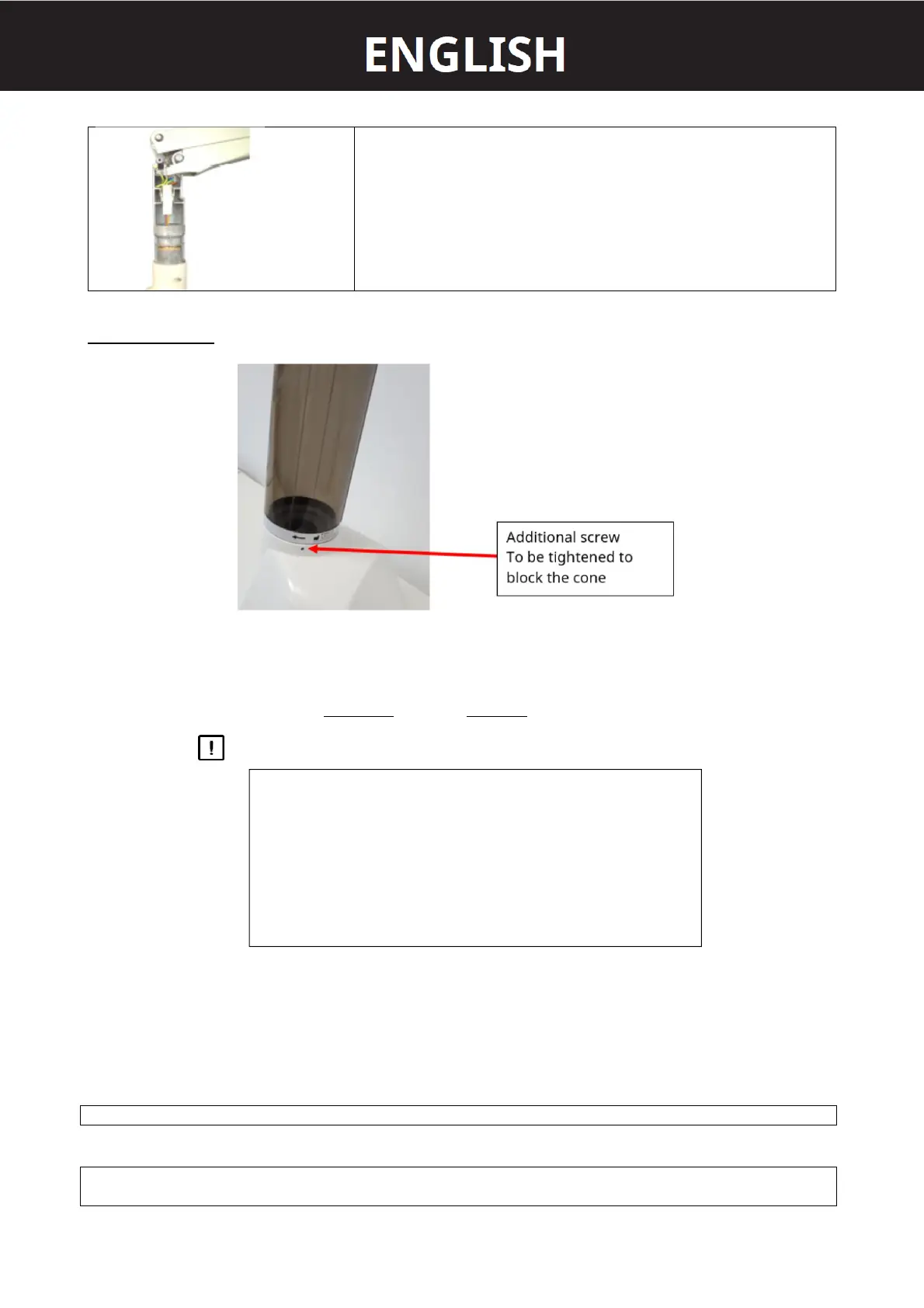

CONE INSTRUCTION
1. Unlock the FIXATION screw using Allen key;
2. Remove the cone rotating it in anticlockwise direction;
3. Place the new cone rotating it in clockwise direction;
a. Be sure to completely rotate it in clockwise direction;
WARNING
4. Lock the FIXATION screw using Allen key.
4.8. BALANCING THE PANTOGRAPH ARM
CAUTION
The pantograph arm must be adjusted only when the tubehead is assembled (fig. 12).
WARNING
To prevent damages to the internal mechanism while performing adjustment and balancing tests, the
adjustment key must not be left in place.
IF ROTATION IS:
A. NOT COMPLETE
OR
B. IS DONE IN WRONG DIRECTION
THE FIXATION BY SCREW SHALL NOT BE EFFECTIVE
