INSTALLATION & MAINTENANCE MANUAL • X-MIND DC • (06) • 10/2018 • NXDCEN020F
Pag. 20 of 51
INSTALLATION
4.1. INSTALLATION
CAUTION
The radiographic system must be installed by professionally trained technicians, who must be able to certify their
work by “Declaration of Conformity”.
WARNING
Prior to installing the radiographic system, it is advisable to verify that all needed requirements have
been satisfied (refer to Chapter 3).
4.2. UNPACKING

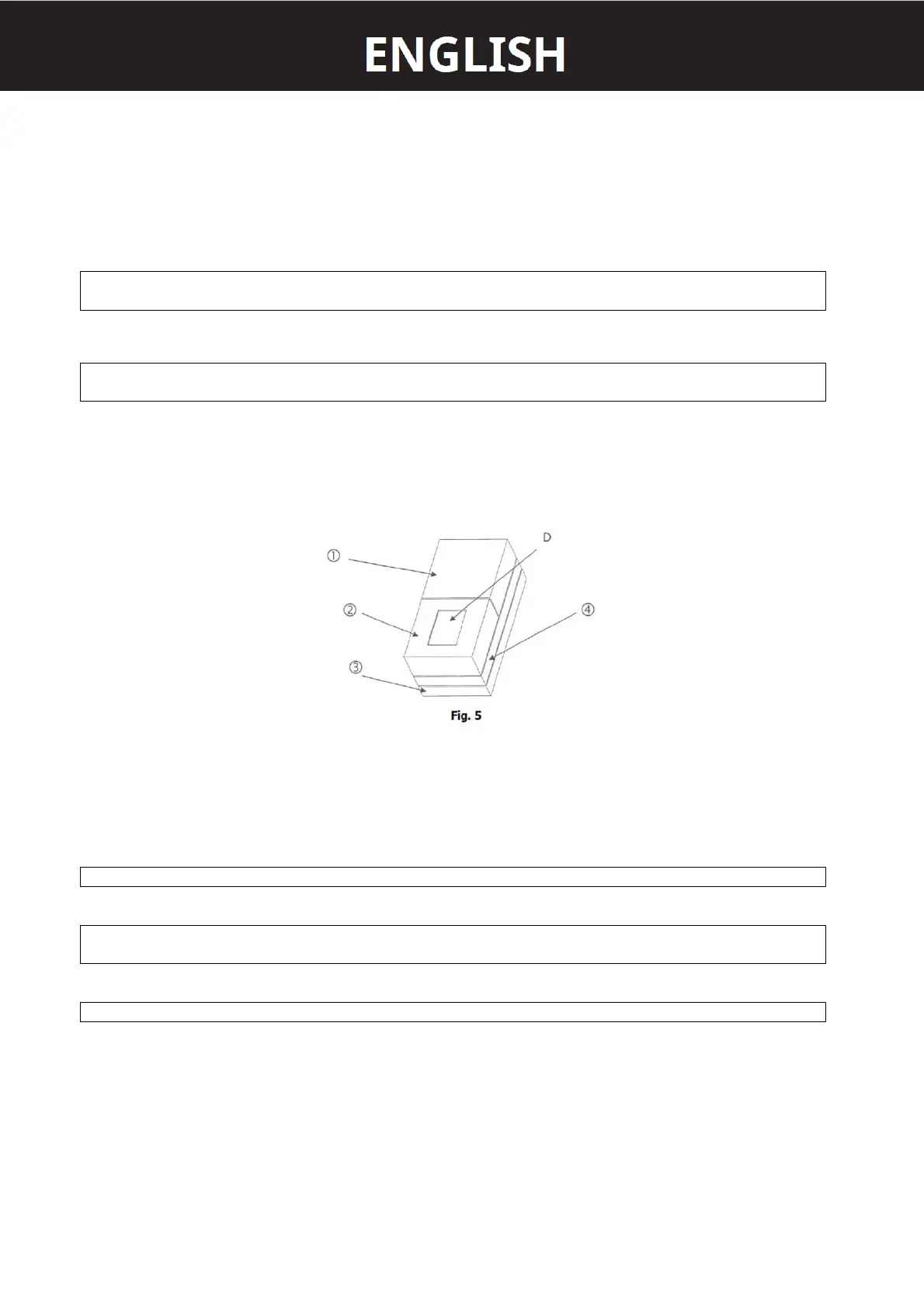

The components of the radiographic system are duly packed within a carton box, as shown in the
Fig. 5:
1. TUBEHEAD PACKAGING
2. TIMER + OPTIONAL PACKAGING
3. PANTOGRAPH TYPE ARM PACKAGING
4. WALL PLATE and BRACKET PACKAGING
D QUICK START GUIDE and WARRANTY CARD
PLEASE NOTE
Prior to installation, duly check all components.
PLEASE NOTE
The carton board and the polystyrene foam can be completely recycled and can be disposed by
authorized recycling companies.
PLEASE NOTE
It is advisable to store the original
packaging to return the goods for repairs.
