ANNEX 2
A2. DRAWINGS AND DIMENSIONS
WALL INSTALLATION

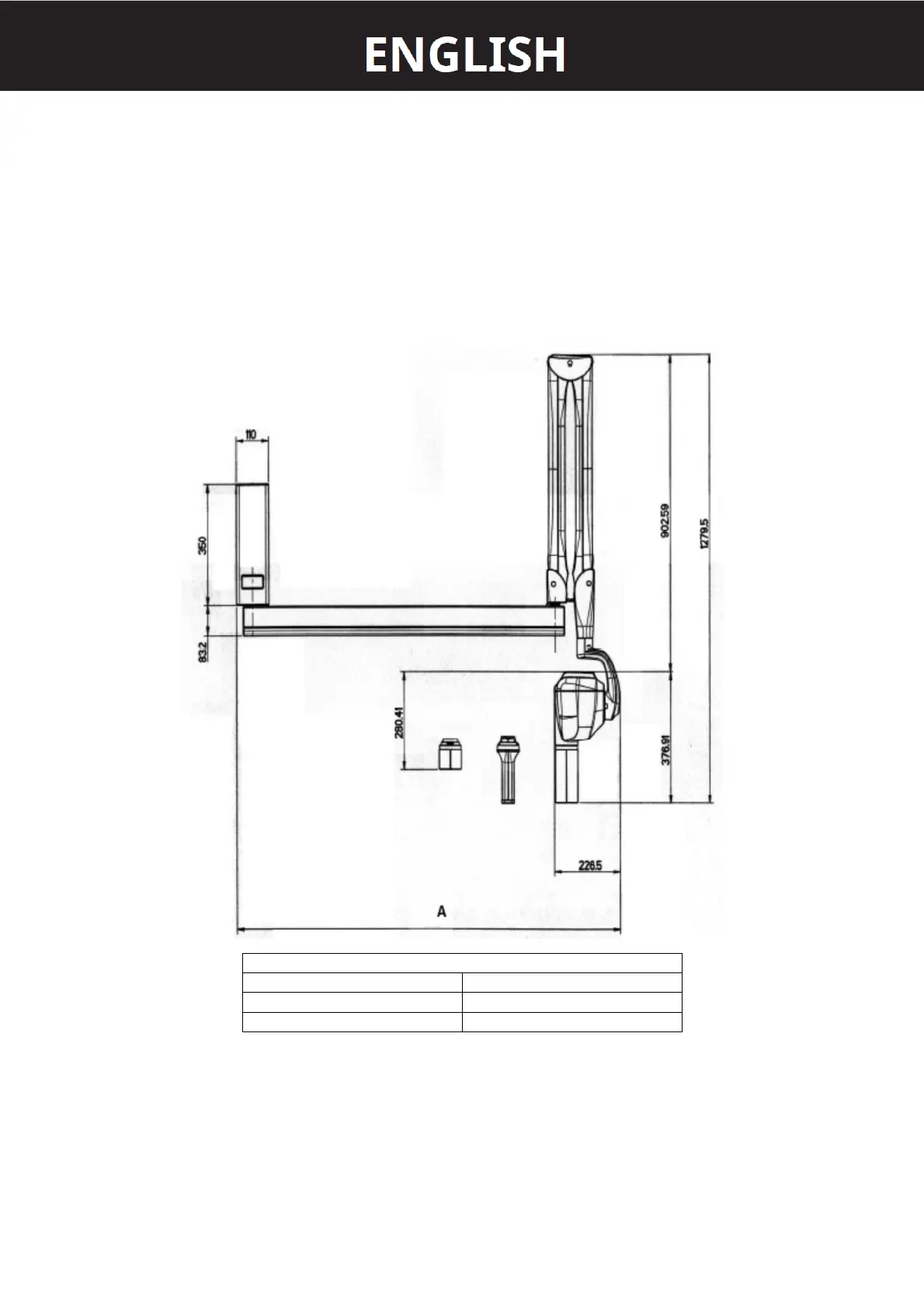

Lateral view (rest position)
Bottom mount
A
40 cm (16’’) bracket
63 cm
80 cm (31’’) bracket
104 cm
110 cm (43’’) bracket 132 cm
Lateral view (open)
Bottom mount
