REPLACEMENT OF FUSES
13.1 FUSES REPLACEMENT
CAUTION
Potentially lethal shock hazard!
Make sure the mains is disconnected before proceed with the following operations.
The timer electronic equipment is protected by n° 4 fuses located on the electronic board.
2 fuses to protect the tubeheads (one fuse for each tubehead channel)
1 or 2 fuses to protect the electronic board from power grid. (depending by the installation type, the x-ray control unit
of the X-MIND DC)
1. Single Fuse on Live (F3) and metal pin on Neutral (F4): wall mounting version-permanently installed
2. Double Fuse on Live and Neutral (F3 and F4) : mobile version
To replace them proceed as follows:
INSTRUCTION
1. Out off the power supply.

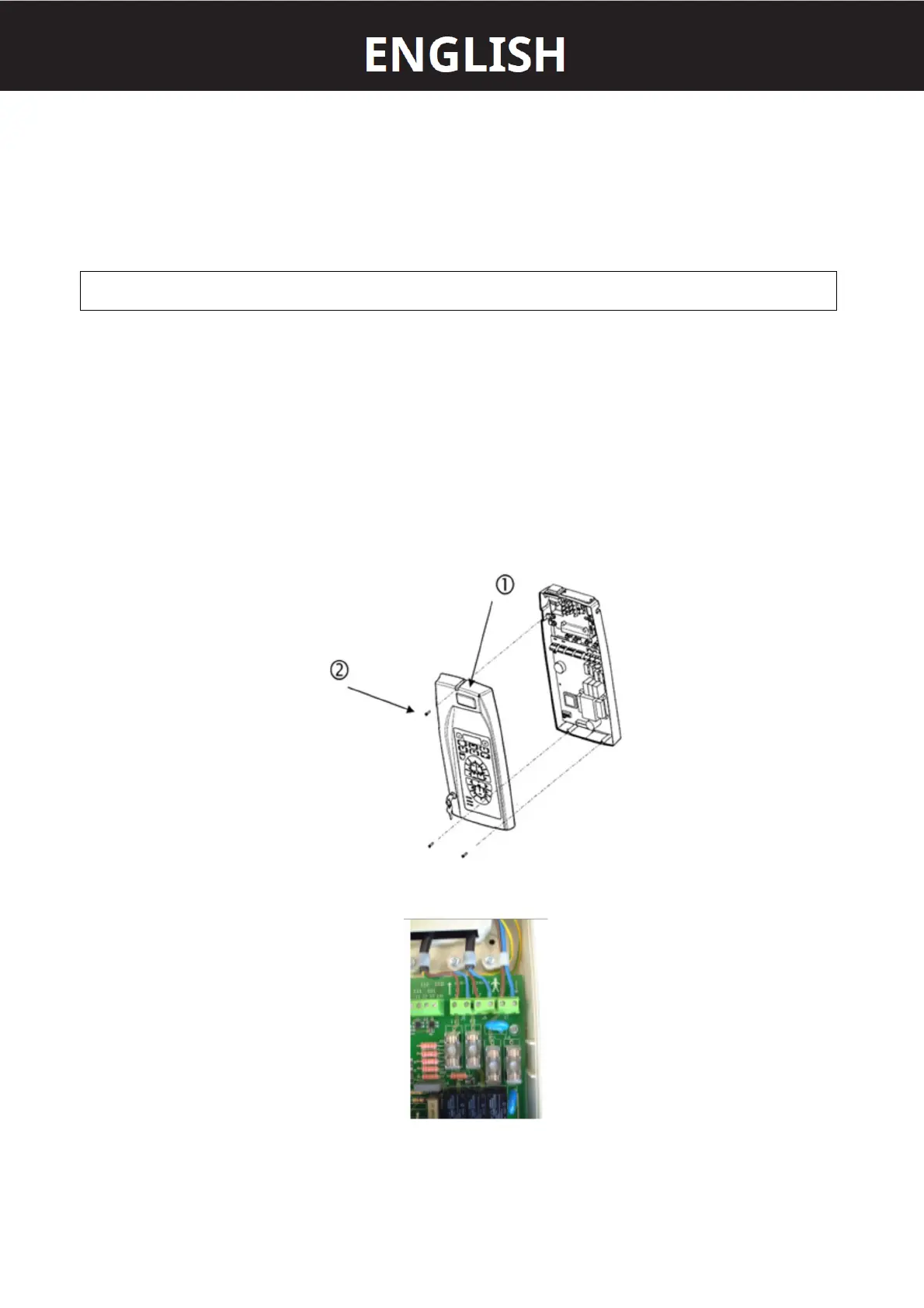

2. Temporarily remove the guard of the timer 1 by unscrewing the fixing screws 2.
3. Spot the fuse to be replaced.
4. Remove the plastic protection.
