INSTALLATION & MAINTENANCE MANUAL • X-MIND DC • (06) • 10/2018 • NXDCEN020F
Pag. 26 of 51

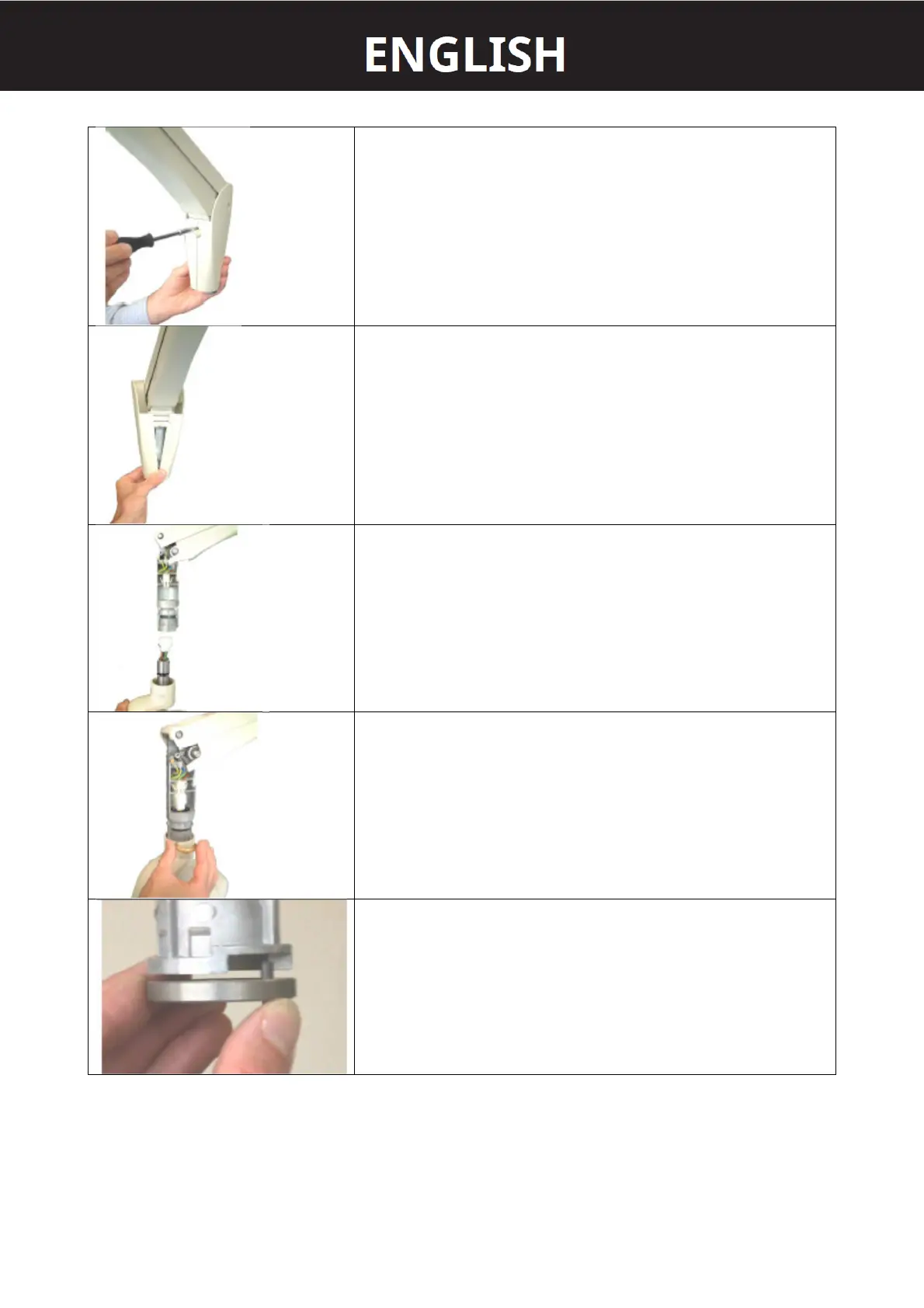

4. Using a tip, act on the front coupling device.
5. Remove both guards.
6. Insert the tubehead pin into the pantograph head.
7. Insert the supporting rest.
8. Check that during insertion, the pin of the turning preventing device
correctly fits the seat located on the pantograph head.
