INSTALLATION & MAINTENANCE MANUAL • X-MIND DC • (06) • 10/2018 • NXDCEN020F
Pag. 29 of 51
Repeat the test and adjustment until the arm B is steady and stable in all positions, even when the
arm A is completely extended.
4. READJUSTMENT OF ARM A
| bring the arm A to the vertical position
| insert the adjustment key in X
| rotate the adjustment key by half turn: clockwise if it tends to come down; counter clockwise if it tends to go up
| withdraw the key
PLEASE NOTE
Repeat the test and adjustment until the arm A is steady and stable in all positions, even when the arm

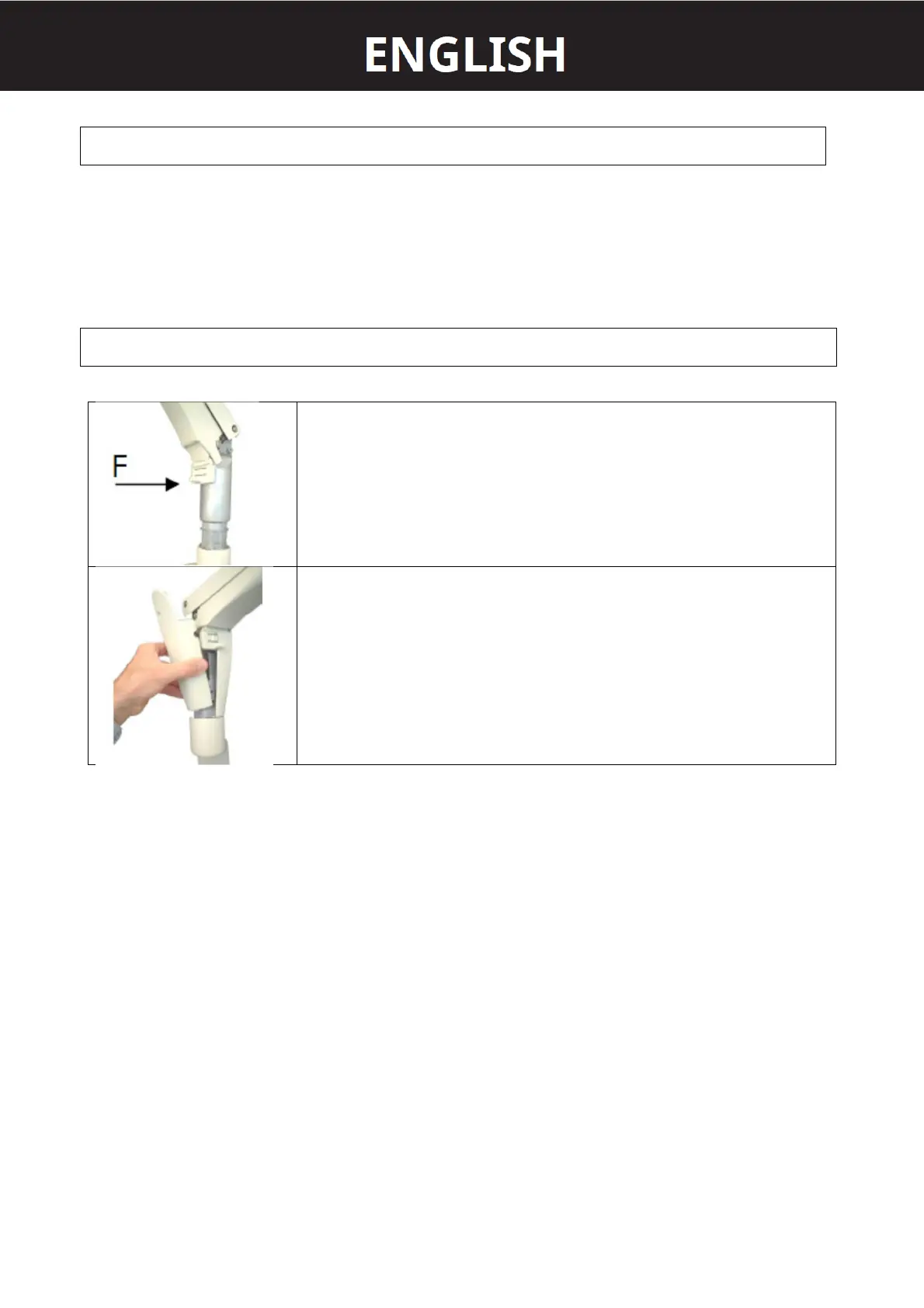

5. Insert the movable finish F between the pantograph type arm guard and
metal frame.
6. Insert the pins of the guards into the relevant seats; then position them
and check that the movable finish is coupled to the guards.
