Control Panel Overview

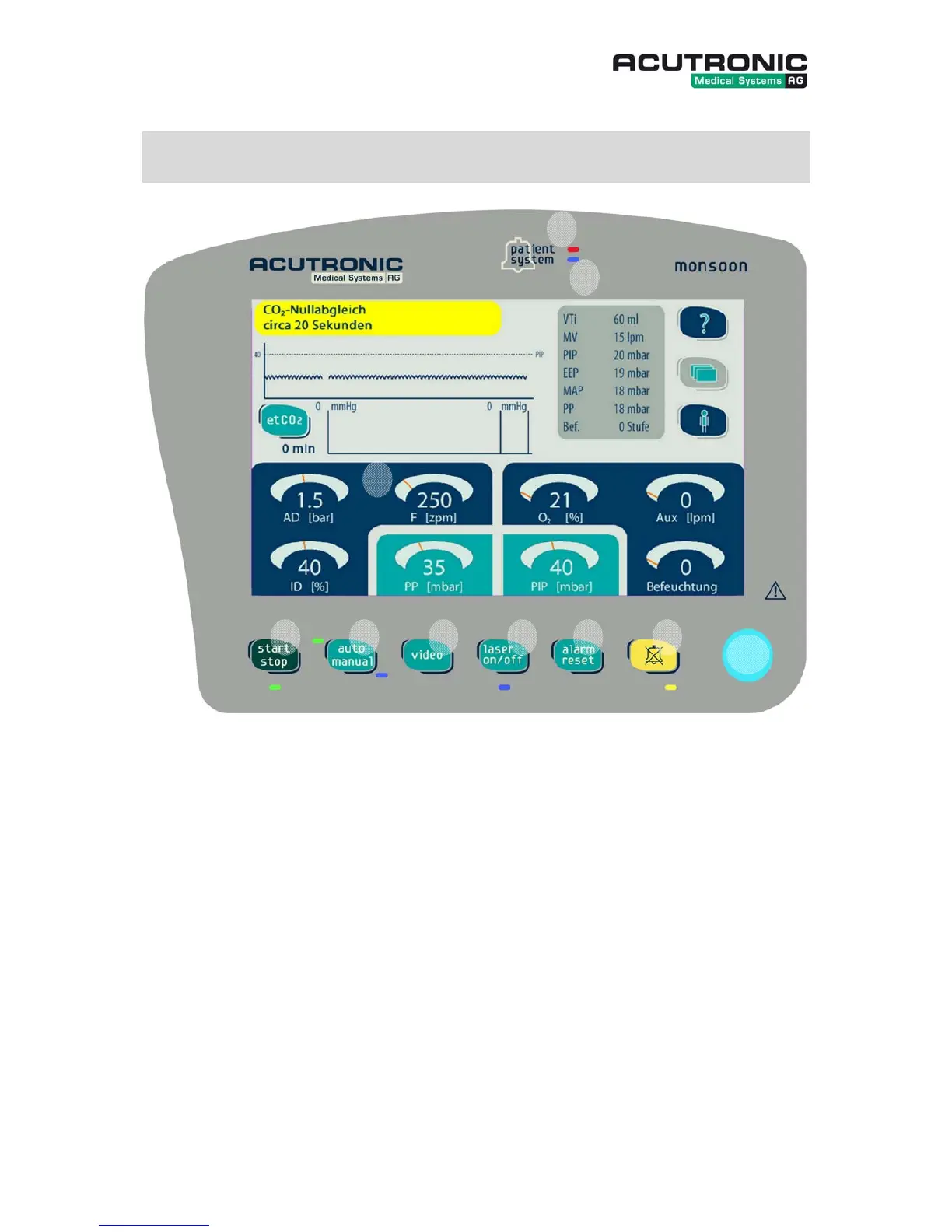

Figure 2: Control panel overview
Legend:
Element 1: Patient alarm LED
Element 2: System alarm LED
Element 3: Display
Element 4: Jet on/off switch (with LED); hold key in manual mode
Element 5: Manual/automatic mode switch (with LEDs)
Element 6: Video channel activation for camera
Element 7: Laser function on/off switch (with LED)
Element 8: Reset alarms and notifications
Element 9: Mute alarm (with LED) (2 minutes)
Element 10: Rotary pulse encoder
4 5
3
7 8 9
10
1
2
6
