Instructions for use MONSOON 5.6e
20/09/2010
36/61
CPAP Ventilation Set for MONSOON

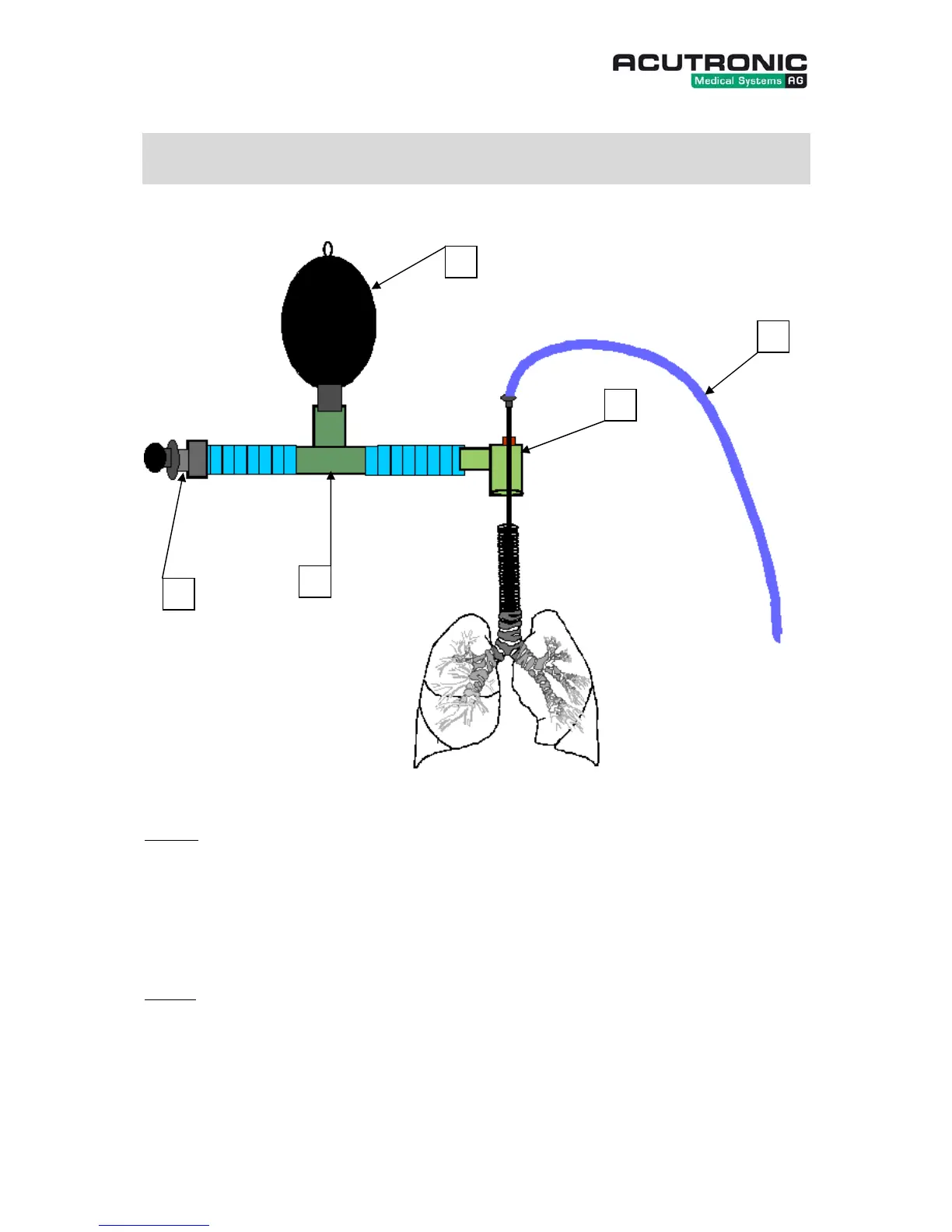

Figure 7: CPAP ventilation set
Legend:
1. 2 litre breathing bag
2. Patient connecting tube (part number 1004)
3. Swivel adapter with Jet cannula or Luer Lock adapter (part number 1010)
4. Standard T-piece with 22 mm connections
5. Standard PEEP valve with 22 mm connection (part number 1000-8014)
Set-Up:
1. Connect swivel adapter to endo- or transtracheal tube.
2. Secure breathing bag and 22 mm ventilation tube to T-piece. The tube from the swivel adapter to
the T-piece should be no longer than 50 cm. The length of the tube from the T-piece to the PEEP
valve is less critical and can be approx. 1 m long.
1
2
4
5
3
To apparatus port
marked JET
