Instructions for use MONSOON 5.6e
20/09/2010
32/61

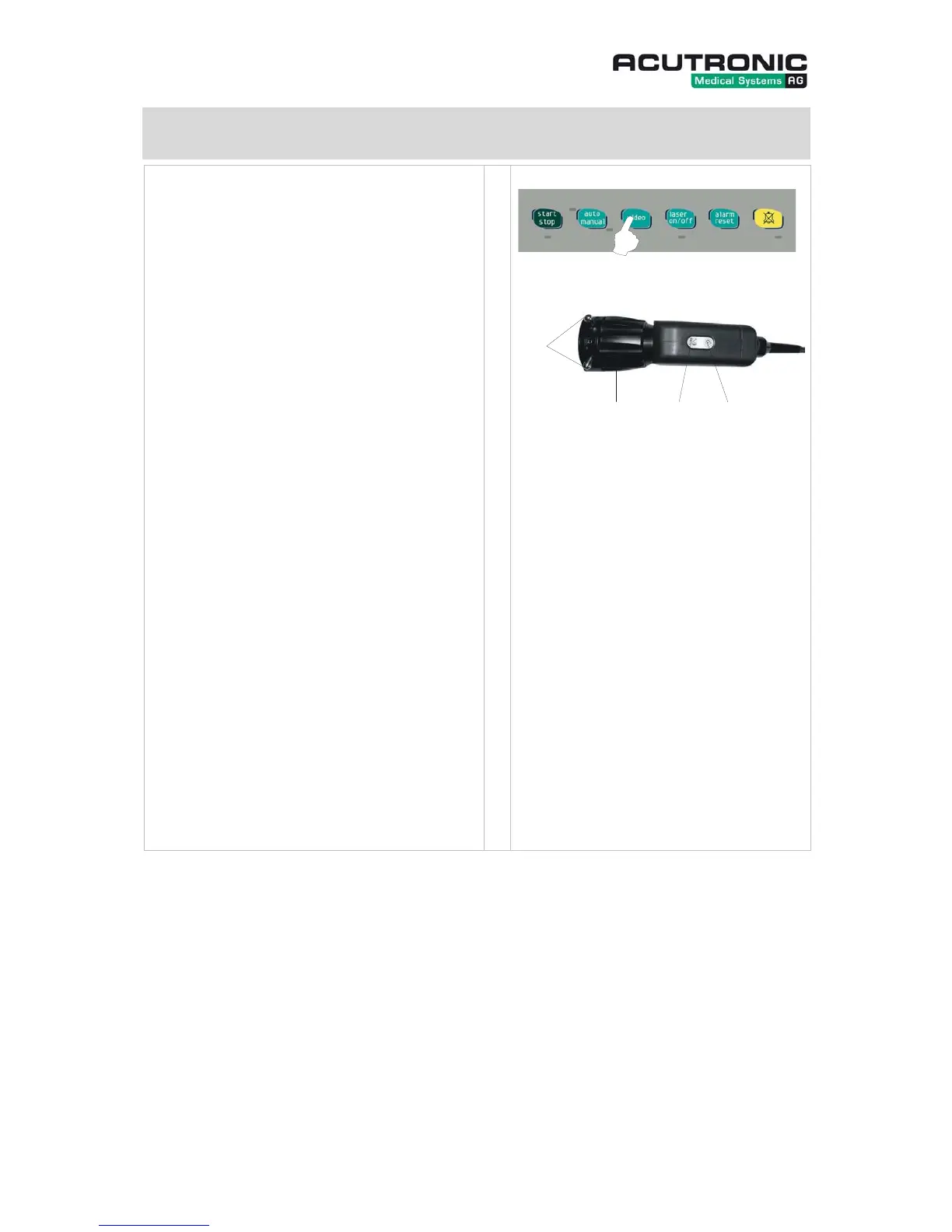

Video Camera (Optional)
Press the
“Video”
key to activate the video
camera.
Focusing the image
To focus the image, turn the optical focusing ring
(2) on the camera head.
Adjust white balance
Proceed as follows:
Aim the endoscope at a white object, e.g. sterile
gauze.
Briefly press the white balance button (3) and
keep the endoscope aimed at the white object for
5 sec.
The image will now change to pure white. This
process allows true colour rendering for all col-
ours.
Window function
The „Window” button (3) will select a preset win-
dow. Only the part of the camera chip containing
image information will be used to control sensitivi-
ty. This function allows black edges of e.g. thin
optics with small working diameters to be re-
moved, thus optimizing the images.
The window function is deactivated in the factory
settings. Hold button 3 (min. 3 sec) to activate the
Window function. This setting can be recognised
by images now being displayed without bright-
ness artefacts when using thin endoscopes. To
deactivate this function press key 3 again (min. 3
sec).
1 Lock for endoscope ocular
2 Focus
3 White balance/window function
4 Remote function
1
2
3
4
(2)
(1)
(3) (4)
