145

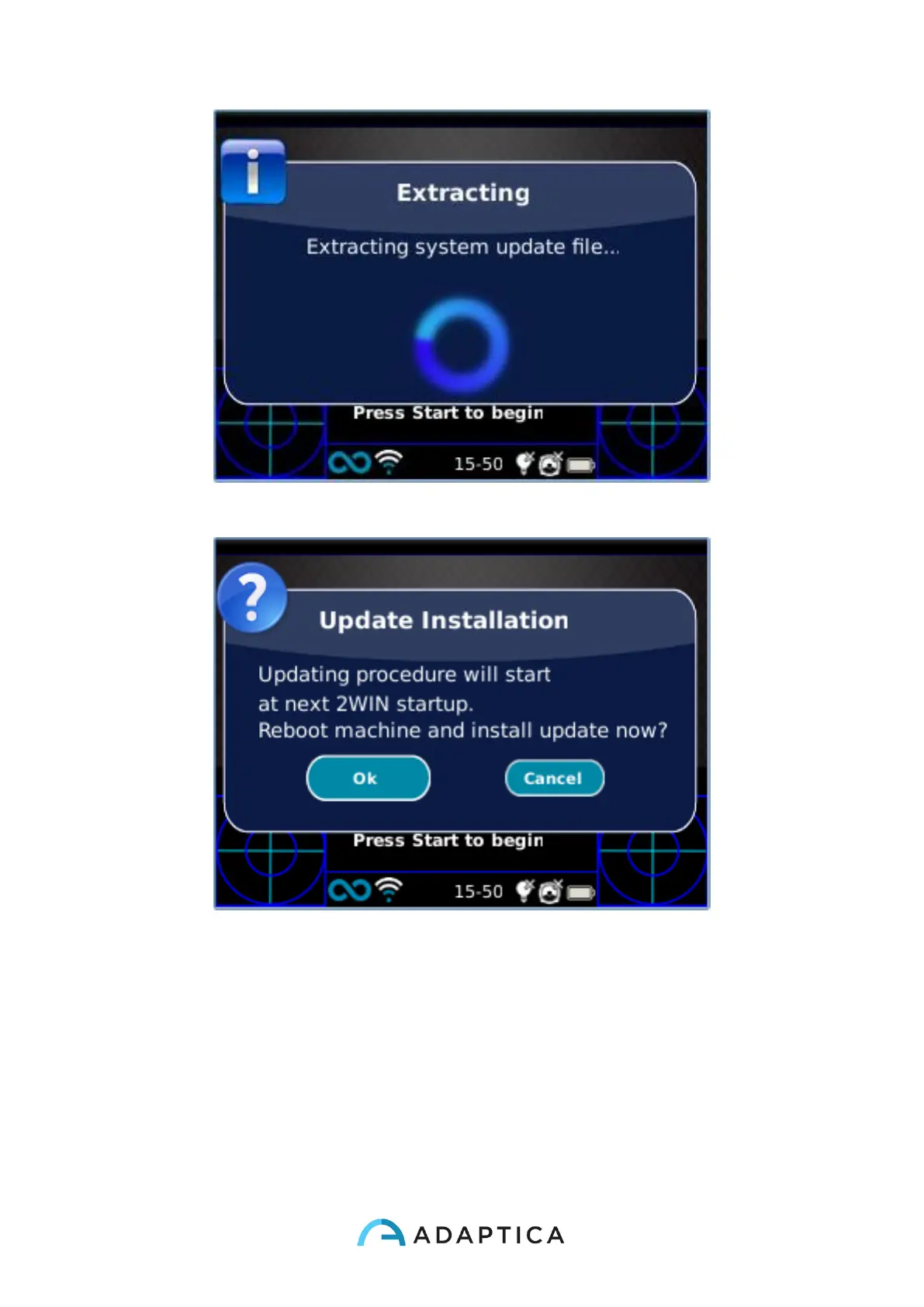

After the extraction
file,
2W
IN
will
prompts the request of
immediate or delayed installation.
If
OK
button
is
pressed,
2W
IN
will
resta
rt
and
run
the
system
update.
Press
the
CANCEL
button to delay the update
(the update will take place at next 2W
IN
reboot). System update
will start at next startup.
If
the
2W
IN
is
in
2WIN-S
configuration,
inside
a
KALEIDOS
accessory,
aft
er
the
system
update, the 2WIN will restart again for the KALEIDOS firmware update
.
144
146
Table of Contents
Summary
3
Table of Contents
3
1 Manufacturer Identification
6
2 Legend of Symbols
8
3 Glossary
9
4 Intended Use of the Device
11
5 Classification and Applied Standards
11
Classification According MDD 93/42/Eec, Annex IX
11
Classification and Type of Applied Parts
11
Ip Classification
11
Electromagnetic Compatibility
11
Applied Standards
11
6 Precautions
12
7 Quick User Guide
15
The 2Win
15
Main Applications
16
Exam Conditions
16
Exam Procedure
16
Measurement Tips
18
8 Description of the Device
20
2Win
20
2Win-S
21
Labels
22
Package Labeling
24
Kaleidos Labeling (2Win-Sonly )
25
Interfaces
27
Graphical User Interface
31
9 Operative Information
32
Operating Conditions
32
Unpacking
32
Insert Battery
32
Extract Battery
33
Battery-Charging
34
Before Operation
35
Data Management Disclaimer
35
Software Language
36
2Win-Simportant Note on Battery
37
10 Operative Instructions
38
Environment Setup
39
Device Setup
40
Eye Selection
40
Interactivity/Attraction of the Patient
41
Patient Data
42
Browsing Mode
42
Preparation of the Patient
43
Measurement
43
Zoom Function
49
Menu
52
Spherical Equivalent
58
2Win Anterior Segment Hint
58
Quick Menu
61
Contextual Help
62
Summary of Menu Entries
63
Print to Portable Infrared Printers
66
Mail Printing
67
Save Exam
68
Gaze
72
Customization
74
Notification Center
75
Age Selection and Screening Mode
76
Screening Table
77
11 Wireless Connections
81
Bluetooth Connectivity
81
Wifi Connectivity
82
Pairing and Transferring a 2WIN Exam to Visionfit SC
87
Sftp and Vnc+Ssh Access Credentials
95
Sftp and Vnc+Ssh Suggested Softwares
96
Keyboard Command for the Use of Vnc+Ssh
96
12 Kaleidos
97
Kaleidos Accessory Models
97
Kaleidos: How to Start
99
Kaleidos 3D: How to Start
100
How to Clean the System
101
Kaleidos Packing List
102
Kaleidos 3D Packing List
102
Control Panel Functionalities
103
13 Remote Control 2Win App
104
2Win App Installation and Configuration
104
How to Use the 2Win App
107
14 Remote Control Kaleidos App
110
Kaleidos App Installation and Configuration
110
Refraction Exams Using Kaleidos App
112
Kaleidos App Anterior Segment Hint
119
Cr Exams Using Kaleidos App
122
Review Exams Using Kaleidos App
130
Kaleidos App Settings
131
Emr Connection Setup
135
15 Applications (Packages)
138
Installation
138
Activation
138
Visualization
138
Auxiliary Windows
139
Modes (2WIN Applications)
139
16 Manual Software Upgrade Instructions
143
17 Automatic Software Upgrade Procedure
143
18 Disinfection
147
19 Maintenance and Cleaning Instructions
148
Storage Instructions
148
Instructions for Correct Disposal of the Device
148
Separate Collection for Electrical and Electronic Equipment
148
2 Win Applications Specific Manuals
150
Legend of Symbols
150
2Win Applications Installation
150
Analysis of Corneal Reflexes Position (CR-App)
151
Dynamic Pupillometry Application (DP-App)
160
Lens Centering Application (LC-App)
172
Intermediate Vision Application (66Cm-App)
179
Eye Morphology Application
186
21 Troubleshooting
189
22 Additional Information
190
Technical Specifications
190
2Win Rechargeable Battery Specifications
190
Kaleidos Rechargeable Battery Specifications
190
Wi-Fi Modules / Bluetooth Adapters
191
Other Specifications
191
In Flight Use
191
Device Warranty
191
Information for Assistance
192
Note for Service Personnel Only
192
Remote Control
192
Telemetry
192
Appendix A - Data Management Disclaimer
193
