10.9 Zoom function
When the measurement is performed, the operator can make a zoom on the acquired
pupils of the patient. In order to do that SHORT PRESS the PRINT button. In order to
come back to the main visualization just short press the power botton.

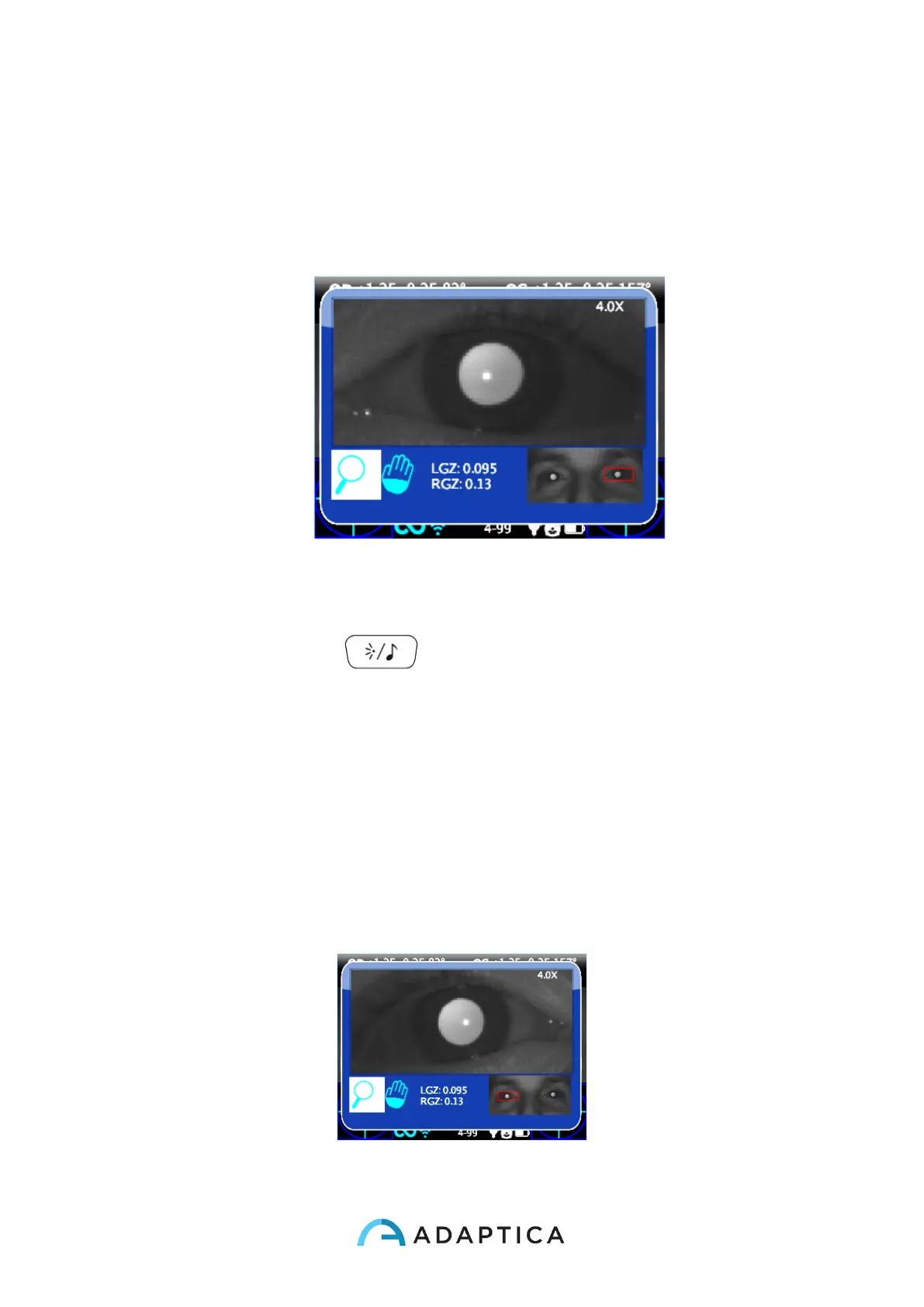

The Zoom App has two main functions on the bottom left of the screen: the Zoom function
(lens) and the Pan function (hand). The function in use is indicated with a lighter square.
You can change function by pressing the central button of the joystick or by the sound/at-
tention lights button (Button D) .
In normal condition the Zoom frame will automatically get in position (clicking on print but-
ton from the main result window) on the left pupil zoomed to the maximum (4x). If it
couldn’t identify the pupils (failure measurement or measurement done without Zoom func-
tion) maybe the pupils haven’t been identified and in this case the Zoom will get in position
on the center of the image
The zoom function indicated by the magnifying glass is the function that allows you to
increase or decrease the zoom power on the image by the up or down buttons from a
maximum of 4x to a mimimum of 1x.The steps are 0.2x each.
