Adaptica 2WIN User Manual

178

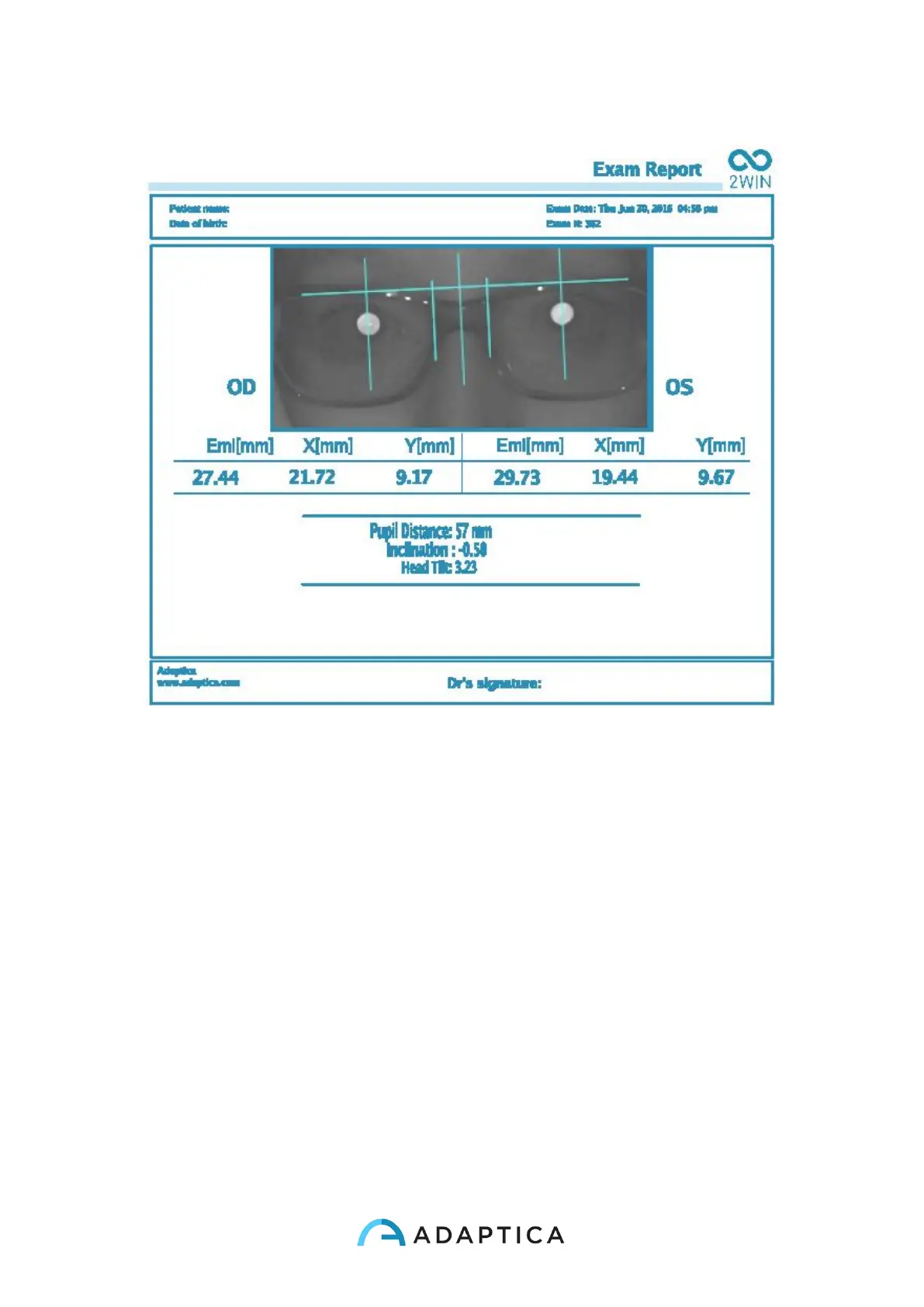

Exam Report
The PDF Report is composed of the lens centering graphic and the corresponding data.
The image represents the axes graphic previously positioned.
The report is divided in right and left eye, the values expressed for each eye represent:
• EMI: The distance between the pupil and the central vertical axis.
• X: The distance between the optic axis center and the external vertical axis of the
stud
• Y: The distance between the optic axis center and the horizontal axis.
The other values are:
• Pupil distance: The distance between the pupil optic axes.
• Inclination: The additional inclination added to the head tilt by the operator.
• Head Tilt: The optic axis tilt respect to the horizontal axis.
