5-7
Entd A022-4063
Rcvd A022-4064
Not Confirmed
[
∗
] to continue
If the serial number transmitted does not match the serial number
entered, a display similar to the one shown will appear. If the loop
number does not match, it will also be displayed.
If so, activate the button on the wireless key once again. If a match is
not obtained (i.e., summary display does not appear), press the [#]
key and then enter the correct serial number.
If the serial number transmitted matches the serial number entered,
the keypad will beep 3 times and will return you to step 8 to enter
the starting zone for the next wireless key.
NOTE: Following the successful enrollment of each wireless device,
remove ONE of the serial number labels from the device and affix it
in the appropriate column on the ENROLLED TRANSMITTERS
worksheet of the Programming Form; then enter the other
information (zone number, zone type, loop number, etc.) relevant to
that device.

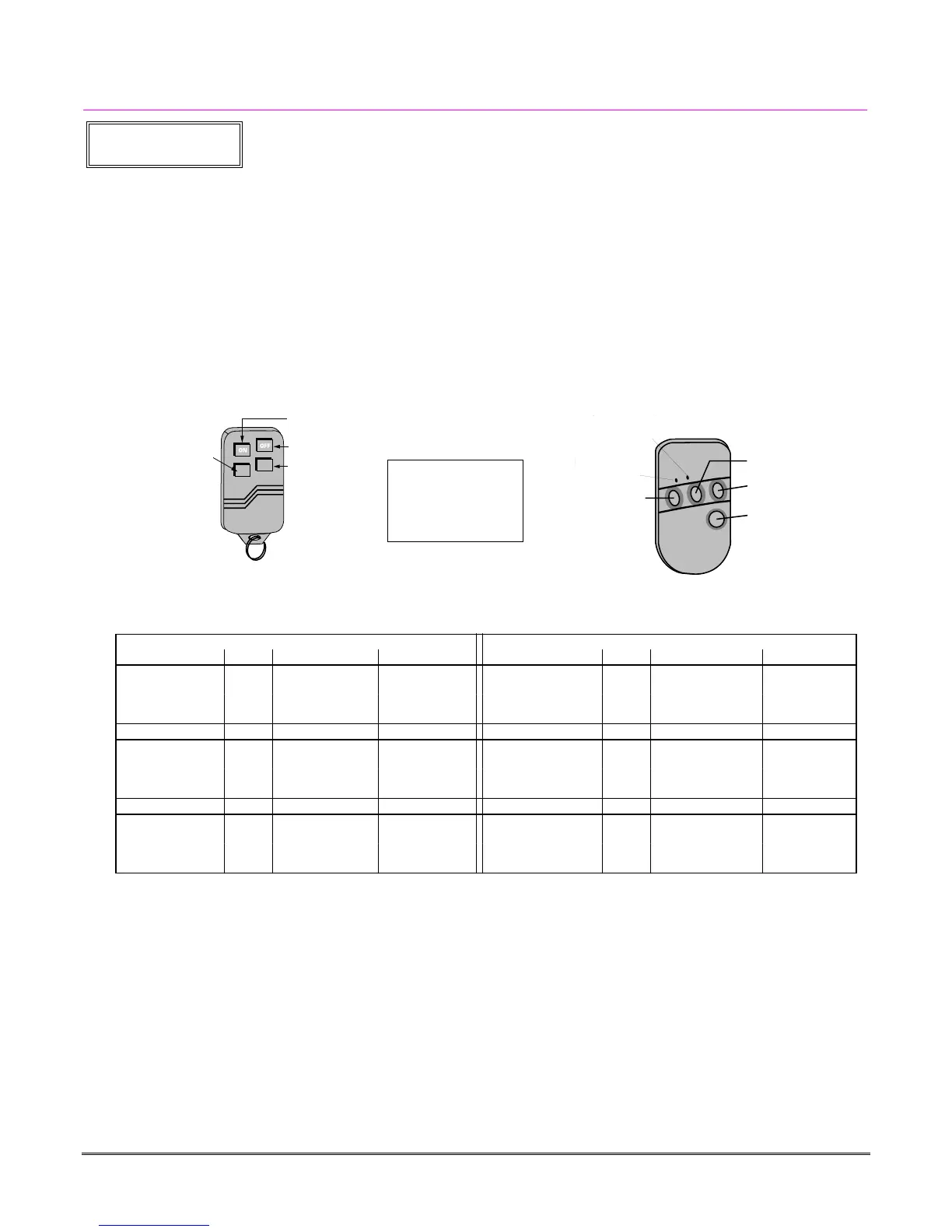

Wireless Key Predefined Default Templates
YOU MUST
PROGRAMME
THIS BUTTON
LOOP 3
LOOP 1
LOOP 2
LOOP 4
ENROLL AS "BR"
YOU MUST
PROGRAM
THIS
BUTTON
(LOOP 4)
LOOP 3
LOOP 2
LOOP 1
5804 Wireless Key Transmitter
Note:
These transmitters
are not intended for
use in UL
installations.
5804BD FRONT VIEW
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
BUTTON A
BUTTON D
BUTTON B
BUTTON C
GREEN/YELLOW
LED
RED/YELLOW
LED
LOOP 3
LOOP 2
LOOP 4
LOOP 1
GRE
GREEN/YELLOW
LED
RED/YELLOW
LED
(YOU MUST PROGRAM
THIS BUTTON)
ENROLL AS "BR"
5804BD 2-Way Wireless Key Transmitter
For 5804 For 5804BD
TEMPLATE 1
Loop Function Zone Type
TEMPLATE 4
Loop Function Zone Type
1 No Response 23 1 No Response 23
2 Disarm 22 2 No Response 23
3 Arm Away 21 3 Arm Away 21
4 No Response 23 4 Disarm 22
TEMPLATE 2
Loop Function Zone Type
TEMPLATE 5
Loop Function Zone Type
1 No Response 23 1 No Response 23
2 Disarm 22 2 Arm Stay 20
3 Arm Away 21 3 Arm Away 21
4 Arm Stay 20 4 Disarm 22
TEMPLATE 3
Loop Function Zone Type
TEMPLATE 6
Loop Function Zone Type
(same as temp. 2) 1 No Response 23 (same as temp. 5) 1 No Response 23
2 Disarm 22 2 Arm Stay 20
3 Arm Away 21 3 Arm Away 21
4 Arm Stay 20 4 Disarm 22
NOTE:
Templates 3 and 6, which are identical to templates 2 and 5 respectively, are shown for future reference.
