Adtech CNC Technology Co., Ltd. 3. Program saving & editing
- 6 -
3.
Operating panel
3.1 LCD/keypad
Keypad

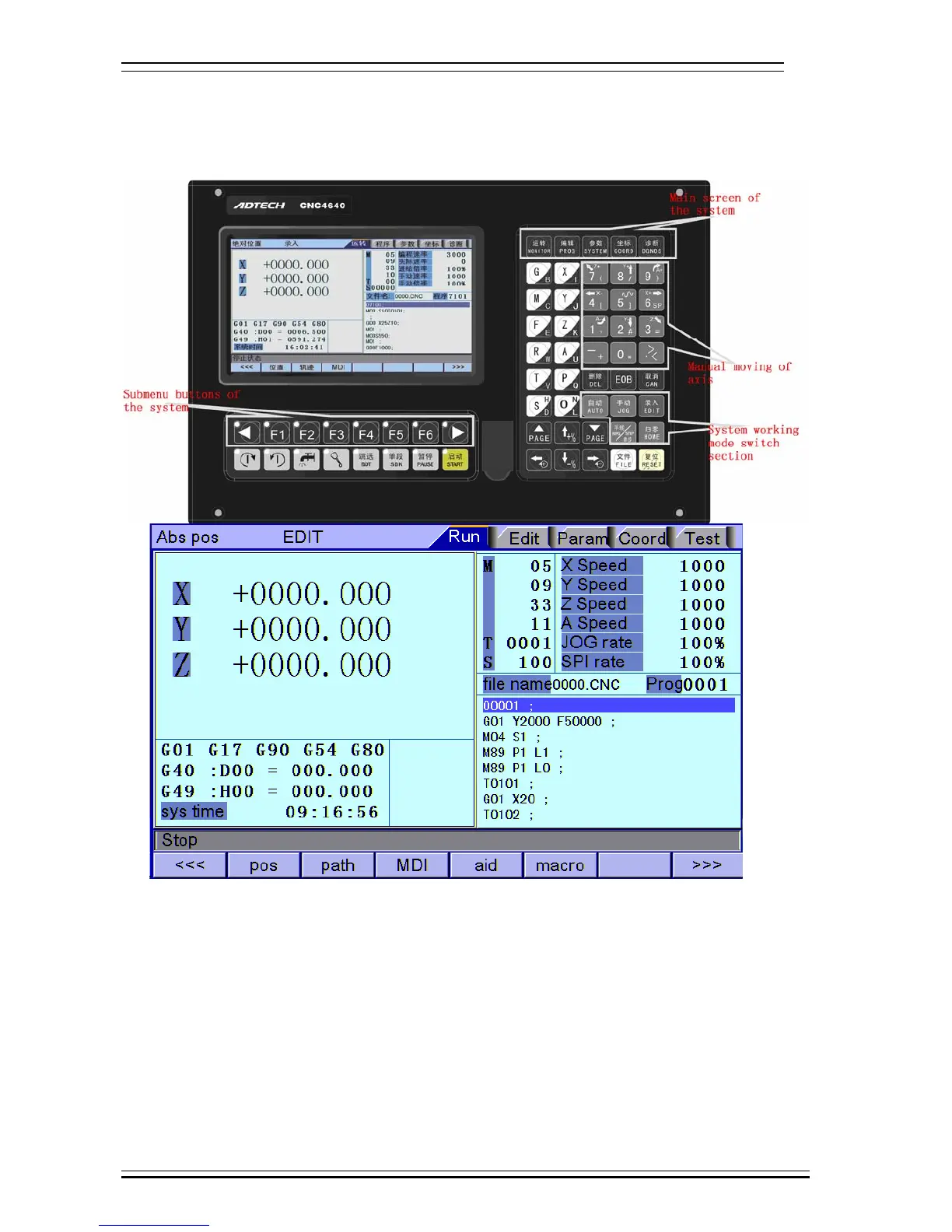

Fig. 3.1 CNC4640 Operating Panel Diagram
Note:
Press the submenu buttons to perform the operations of submenus.
Manual axis moving and edit & input are composite. It has different definitions according to the modes.
System working mode switch section is used to switch working modes, which can improve the security
and system performance. Handwheel and single step mode are switched with Repeat button.
